aluminum wafer disc
Green House
76069100
Although "aluminum circle" and "aluminum disc" also called them as "round aluminum plate, " or " round aluminum sheets", they have different specifications and various applications.
Aluminum Circle refers to a circular aluminum sheet, emphasizing its geometric round shape. It can be flat or semi-processed and is often used as a raw material for further manufacturing.
We can produce many kinds of custom sizes. As we are manufacturer, we could provide goods with high quality and reasonable prices.
2. Specifications of aluminum circles:
Aluminum Circle/Disc is mainly used for general commercial and industrial uses, like the cookwares (fry pan, pots, rice cooker, milk containers, jars, kettles), lampshades, road sign board etc. With high quality casting and rolling coils or hot-rolled coils as raw materials ,it goes through different cold rolling deformation, slitting, annealing and finally stamping into an aluminum disc, then packaging for delivery.
Aluminum circle Specification:
Alloy: 1050, 1060, 1070, 3003, 3004, 8011 ect
thickness:0.30-6.0mm
diameter: 80-1600mm
Aluminum circle Tolerance: thickness tolerance +/-0.1mm, diameter tolerance +/-1mm
3. Aluminum circle Surfact Quality :
Be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use,
4. Aluminum circle Mechenical Property:
Chemical Composite and Mechanical Property could meet the requirements of GB/T, ASTM, ENAW, JIS Standard.
5. Aluminum circle Packing:First, plastic cloth with drying agent inside; Second, Pearl Wool ; Third, wooden cases with dry agent , fumigation wooden pallets, aluminum surface could cover blue PVC film
6. Aluminum circle Certificate: ISO9001:2008, SGS and ROHS(if client request, paid by client), MTC(plant provided), Certificate of Origin(FORM A, FORM E, CO), Bureau Veritas and SGS (if client request, paid by client), CIQS certificate

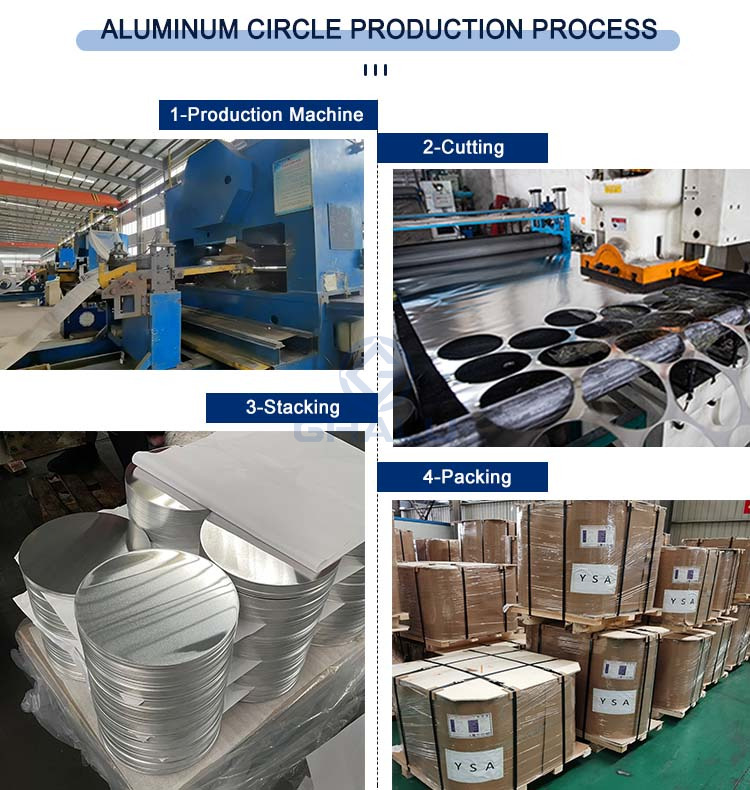

3. Manufacturing Process of aluminum wafer (aluminum circle) for cookwares:
Aluminum Ingot/Master Alloys --- Aluminum Melting Furnace - --- Aluminum Slab --- Hot Rolling (Direct Cast) Or Cold Rolling (Cold Cast) – Punching – Annealing Furnace -- Final Inspection – Packing --- Delivery
Our company can produce aluminum circle, aluminum wafer, aluminum disc 80mm-1600mm diameter, 0.3mm-6.0mm thickness. The main alloys are: 1 series, 3 series, 5 series, 8 series hot rolled casting rolling, 24-hour non-stop production.
3. What's the main differences between DC and CC quality aluminum circles?
Based on their production processes, aluminum circles and discs are classified into two types: DC (hot-rolled) and CC (cast-rolled). DC aluminum circles are perfect for deep-drawing applications such as rice cooker liners, while CC aluminum circles offer greater cost-effectiveness and can replace DC circles in certain deep-drawing scenarios.
| Feature | Cast-Rolled Aluminum Circle | Hot-Rolled Aluminum Circle |
|---|---|---|
| Raw Material | Cast-rolled coil | Cast-rolled aluminum slab |
| Production Process | Processed via cold rolling | Produced through hot rolling |
| Surface Quality | Average | Good |
| Mechanical Properties | Average | Very good |
| Deep-Drawing | Different | Good |
| Anodizing Effect | Average | Good |
| Applications | Traffic signs, etc. | Cookware, lighting, etc. |
| Productivity | High | Average |
| Cost-Effectiveness | Higher | Lower |
We can produce both types of aluminum circles in DC and CC casting with competitive prices and good qualities, if you have any inquiry, welcome to contact us freely by calling: +86-13760798572 or send us an e-mail: info@ghalumetal.com
Home Appliances: The most common use—they’re made into inner liners for rice cookers, pressure cookers, and air fryers, since they handle deep-drawing well and conduct heat evenly.
Cookware: Used for non-stick pans, saucepans, and griddles. Their smooth surface is easy to coat and safe for food contact.
Daily Necessities: Turned into covers for cans, bottle caps, and even decorative trays or lamp shades, as they’re easy to cut and shape.
Industrial Parts: Applied in small hardware components, heat sinks, and electronic enclosures, leveraging their lightweight and thermal conductivity.
Inner Packaging: Each aluminum circle is separated by thin PE film or kraft paper to prevent surface scratches. Small batches are often packed into plastic bags or moisture-proof kraft paper bags.
Outer Packaging: Hard cardboard boxes, wooden crates, or plywood pallets are used for reinforcement. Boxes are sealed with waterproof tape to keep out moisture and dust.
Fixing & Protection: For large quantities, circles are stacked neatly and secured with straps to prevent shifting during transit. Edge protectors are added to avoid edge damage.
Labeling: Each package is labeled with key info—material grade, size (diameter/thickness), quantity, weight, and handling instructions (e.g., "Keep Dry" "Handle With Care").
