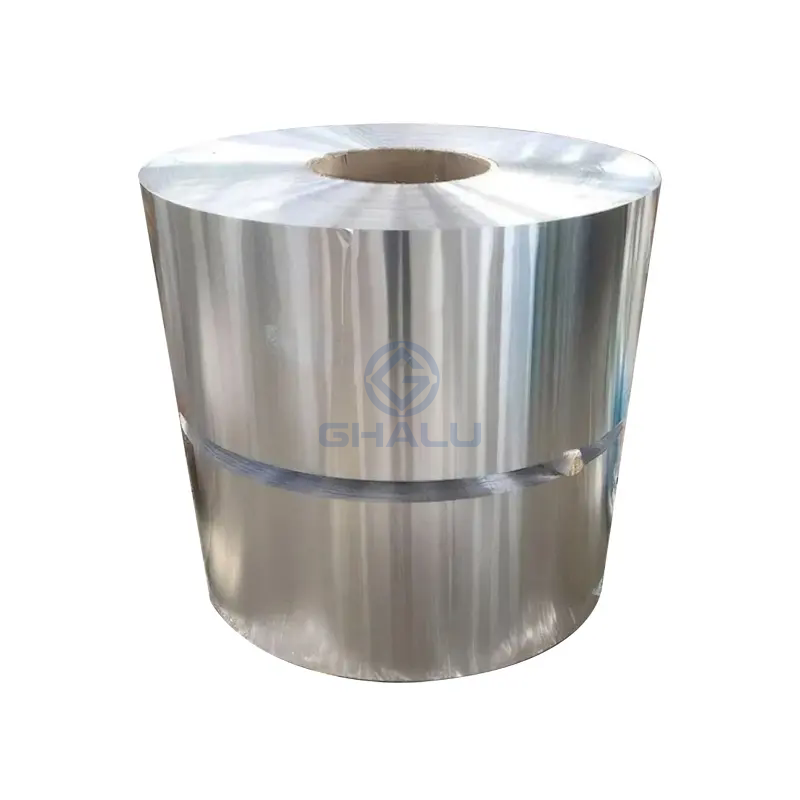

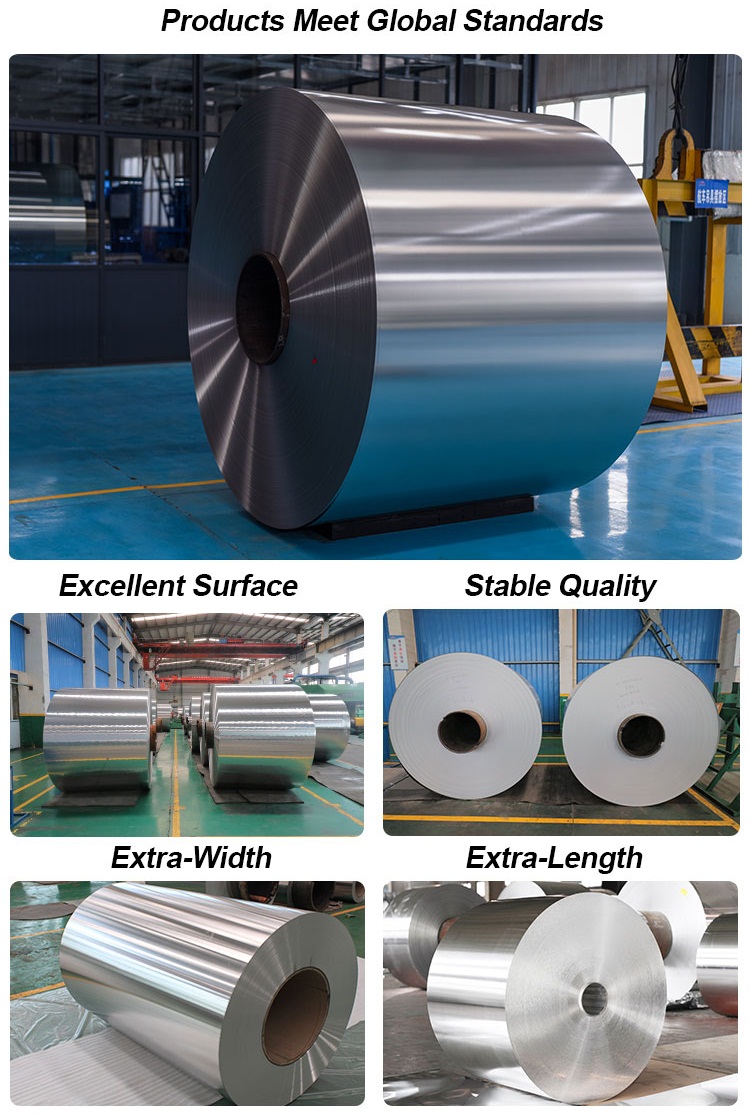

1. What is 1060 Aluminum Coil 4feet width?

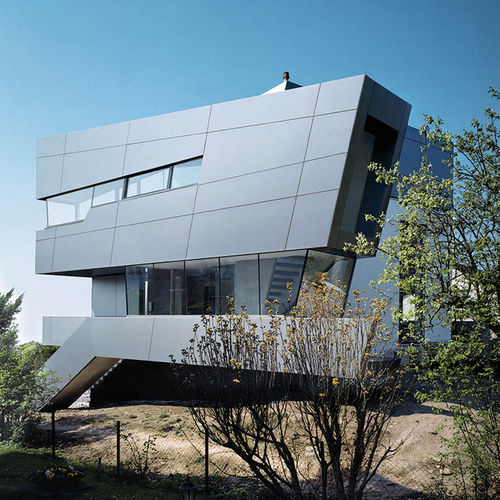

1060 Aluminum Coil 4feet width means the width is 4eet or 1220mm aluminum coil in alloy 1060, which is the pure aluminum coil, and 1220mm width is the most normal use in construction and inustrials. We aslo can povide other different widthes for aluminum coil 1060 alloy, such as 914mm, 1000mm, 1250mm, 1500mm, 1550mm max to 2650mm
Alloy 1060 aluminum coil with an aluminum content of over 99.6%, it is commonly known as pure aluminum and belongs to the widely used 1 series aluminum alloy.
One of the key advantages of this series is its simplicity in the production process, making it a cost-effective choice.

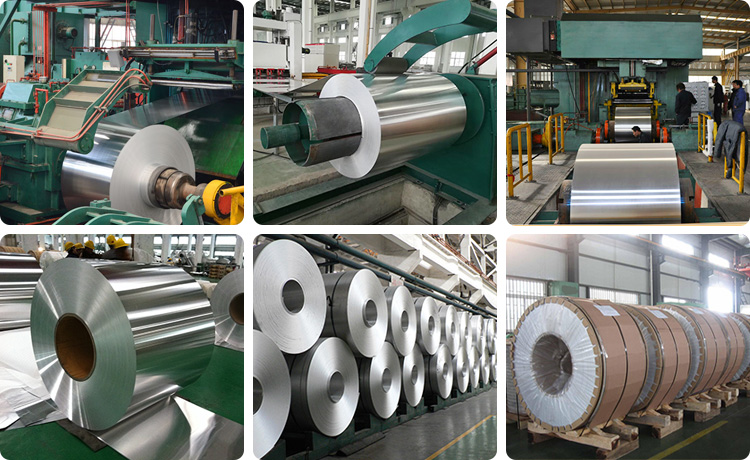

The technology used in manufacturing this coil is mature, resulting in a highly reliable product. Compared to other high-end alloy aluminum sheets, the Aluminum Coil 1060 offers significant cost savings without compromising on quality.
The Aluminum Coil 1060 boasts excellent elongation and tensile strength, making it suitable for a wide range of processing requirements, including stamping and stretching.
Choose the Aluminum Coil 1060 for your industrial needs, and enjoy its superior quality, cost-effectiveness, and versatility. Experience the benefits of a product that combines high performance with excellent processability, making it an ideal choice for a variety of applications.
2.Why choose 1060 Aluminum Coil 4feet width?
Firtsly it has excellent anti-corrosion properties and machining properties, it can be bended or welding or cutting easy to farbrication.
Secondly, the price of aluminum coil 1060 not expensive, it can save the users cost for the products or projects.
Third, it is light weight metal and recycled and eco-enviroment.
It also has high thermal and electrical conductivity, making it an excellent choice for electrical applications like wiring and circuit boards.
3.The technical datas of 1060 aluminum coil:
Aluminum Association Designation: 1060
Common Tempers: O (Annealed), H12, H14, H16, H18, H22, H24, H26
1. Chemical Composition (Weight % - ASTM B210)
The primary difference between 1060 and 1050 is its slightly higher purity level.
| Element | Min (%) | Max (%) |
|---|
| Aluminum (Al) | 99.60 | Balance |
| Silicon (Si) | - | 0.25 |
| Iron (Fe) | - | 0.35 |
| Copper (Cu) | - | 0.05 |
| Manganese (Mn) | - | 0.03 |
| Zinc (Zn) | - | 0.05 |
| Titanium (Ti) | - | 0.03 |
| Vanadium (V) | - | 0.05 |
| Magnesium (Mg) | - | 0.03 |
| Other (Each) | - | 0.03 |
| Other (Total) | - | 0.10 |
Key Takeaway: With a minimum of 99.6% Aluminum, 1060 is purer than 1050 (99.5%). This results in marginally better electrical/thermal conductivity and corrosion resistance, but slightly lower strength.
2. Mechanical Properties
Mechanical properties are very similar to 1050, with a slight reduction in strength due to higher purity.
Typical Mechanical Properties at Room Temperature:
| Temper | Tensile Strength (MPa) | Yield Strength (0.2% Offset) (MPa) | Elongation (% in 50mm) |
|---|
| O (Annealed) | 55 - 75 | 15 - 30 | 35% - 45% |
| H14 | 95 - 115 | 80 - 100 | 10% - 16% |
| H18 | 130 - 150 | 125 - 140 | 4% - 8% |
Note: MPa (Megapascals). 1 MPa ≈ 0.145 ksi.
3. Physical Properties
The higher purity of 1060 gives it a slight edge in conductivity.
| Property | Value |
|---|
| Density | 2.705 g/cm³ (0.0978 lb/in³) |
| Melting Point | ~645 - 655 °C (~1193 - 1211 °F) |
| Thermal Conductivity | 234 W/m·K (at 25°C) |
| Electrical Conductivity | 62% IACS* (Typical Annealed - Slightly higher than 1050) |
| Electrical Resistivity | ~27.8 nΩ·m (at 20°C) |
| Coefficient of Thermal Expansion | 23.6 x 10⁻⁶/°C (20-100°C) |
| Modulus of Elasticity | 69 GPa (10,000 ksi) |
| Shear Modulus | 26 GPa (3,800 ksi) |
IACS: International Annealed Copper Standard
