Alloy 3004
Green House Aluminum
76061259
1. What is the aluminum alloy 3004?
3004 aluminum belongs to the 3xxx series (manganese as the principal alloying element), but with a critical difference: it contains 1.0% to 1.5% magnesium in addition to manganese. This magnesium addition gives 3004 approximately 25% higher strength than standard 3003 aluminum.
Typical Composition:
Manganese (Mn): 1.0–1.5%
Magnesium (Mg): 0.8–1.3%
The balance is aluminum with minor elements for grain control
Key Properties That Drive Performance
Property | 3004 Aluminum Value | Benefit for Your Products |
Tensile Strength | 180–240 MPa (26–35 ksi) | Handles higher structural loads than 3003 |
Yield Strength | ~140 MPa (20 ksi) | Resists permanent denting during use |
Elongation | 18–22% (annealed temper) | Excellent for deep drawing & complex bends |
Corrosion Resistance | Excellent (A rating in marine/industrial) | Long life in humid or chemical environments |
Joining | Excellent (weld, braze, solder) | Easy integration into assemblies |
The chemical composition of alloy 3004 as below:
| Si Silcon | Fe Iron | Cu Copper | Mn Manganese | Mg Magnesium | Cr Chromium | Ni Nickel | Zn Zinc | Ti Titanium | Others Each | Total Aluminum Min |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.30 | 0.70 | 0.25 | 1.0 - 1.50 | 0.8-1.30 | - | - | 0.25 | 0.25 | 0.15 | Remainder |
2. The difference between alloy aluminum 3003 and 3004:
Aluminum-magnesium-manganese alloy grade 3004 is created by adding manganese and magnesium to regular aluminum. This alloy has improved tensile strength, yield strength, and elongation compared to standard aluminum. The tensile strength and yield strength of this alloy are twice that of regular aluminum, and its resistance to oxidation and corrosion is also enhanced. Known as anti-rust aluminum in the metal industry, 3004 Al-Mn-Mg alloy is valued for its anti-rust properties and high strength, making it suitable for a wide range of applications.
| Name | Alloy&Temper | Tensile strength (Mpa) | Yield strength (Mpa) | Elongation (%) |
| Al-Mn | 3003 H14 | 135-175 | ≥120 | ≥3 |
| Al-Mg-Mn | 3004 H14 | 220-265 | ≥170 | ≥3 |
The main of alloy 3004 sheets are produced through the process of hot rolling, resulting in a higher cost compared to 3003 aluminum sheets. Hunan Green House Aluminum, a reputable supplier of aluminum sheets, offers both types. Feel free to inquire below for the most up-to-date pricing information.
3.Primary Applications for 3004 Aluminum Coil:
Thanks to its combination of strength, formability, and corrosion resistance, 3004 coil is specified for demanding manufactured goods:
1. Cookware and Pressure Cookers
The deep drawing process transforms 3004 coil into seamless pots and pressure cooker bodies. Its high elongation prevents cracking during forming, and its corrosion resistance ensures food safety.
2. General Sheet Metal Fabrication
Truck boxes, toolboxes, and equipment enclosures benefit from 3004’s higher dent resistance compared to 3003.
3. Storage Tanks
For water or chemical storage tanks, 3004 provides the necessary structural integrity without the added cost of marine-grade alloys.
4. Heat Exchanger Fins & HVAC
In some evaporator and condenser applications, the higher strength of 3004 allows for thinner gauges, saving weight and material cost while maintaining durability.
The application of 3004 Alloy Aluminum:
A3004 is good material for beverage cans, chemical handling and storage equipment, sheet metal work, builders’ hardware, incandescent and fluorescent lamp bases.
It is also used in roof metal systerm as building panels due to light weight and strong anti-corrosion at outdoor.

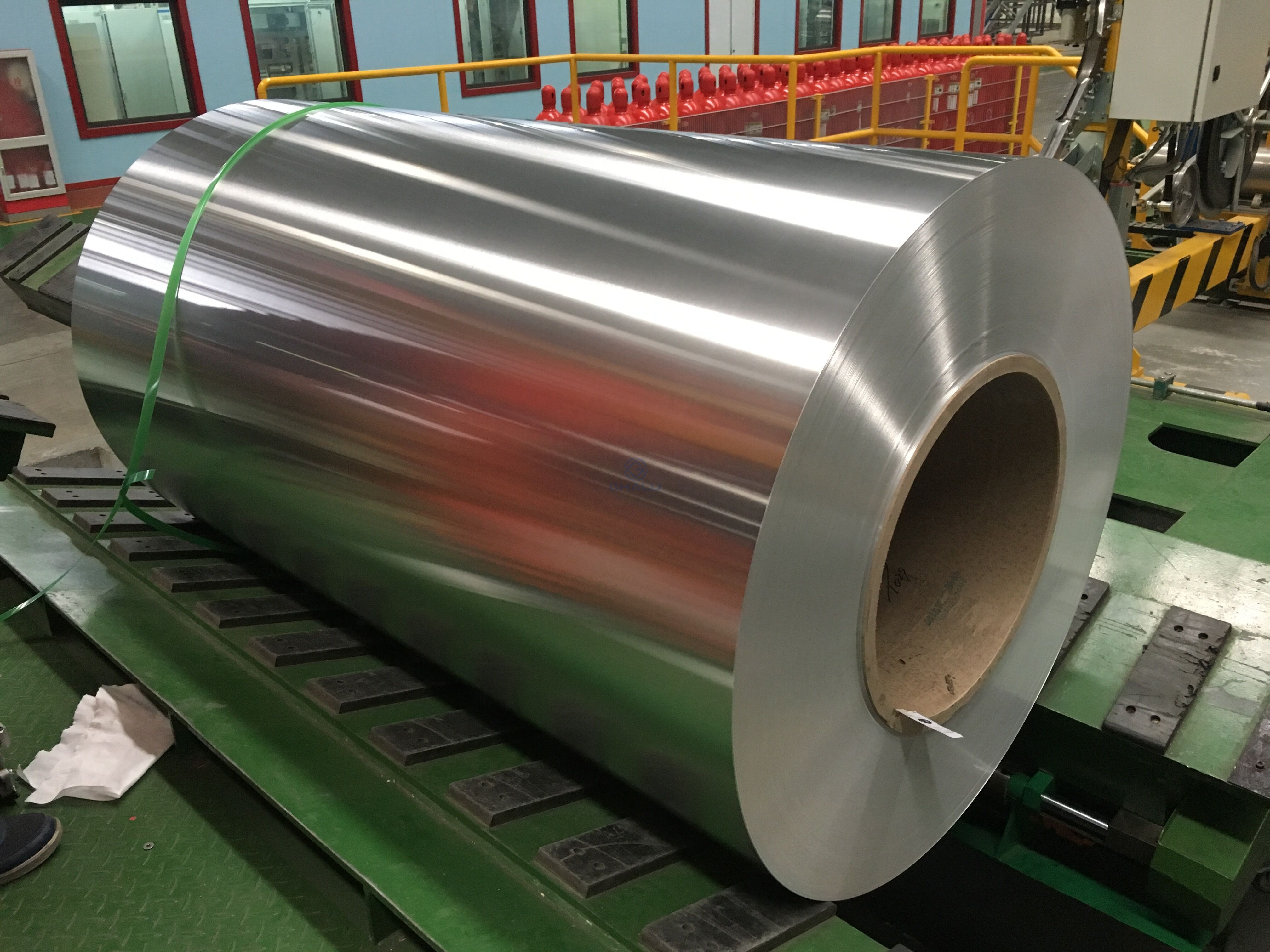

The packages of 3004 Alloy Aluminum Coil
Hunan Green House Aluminum Industry Co Ltd produce 3004 aluminum coil or sheet with strong exporting standard packages.
