1060
Green House Aluminum
76069100

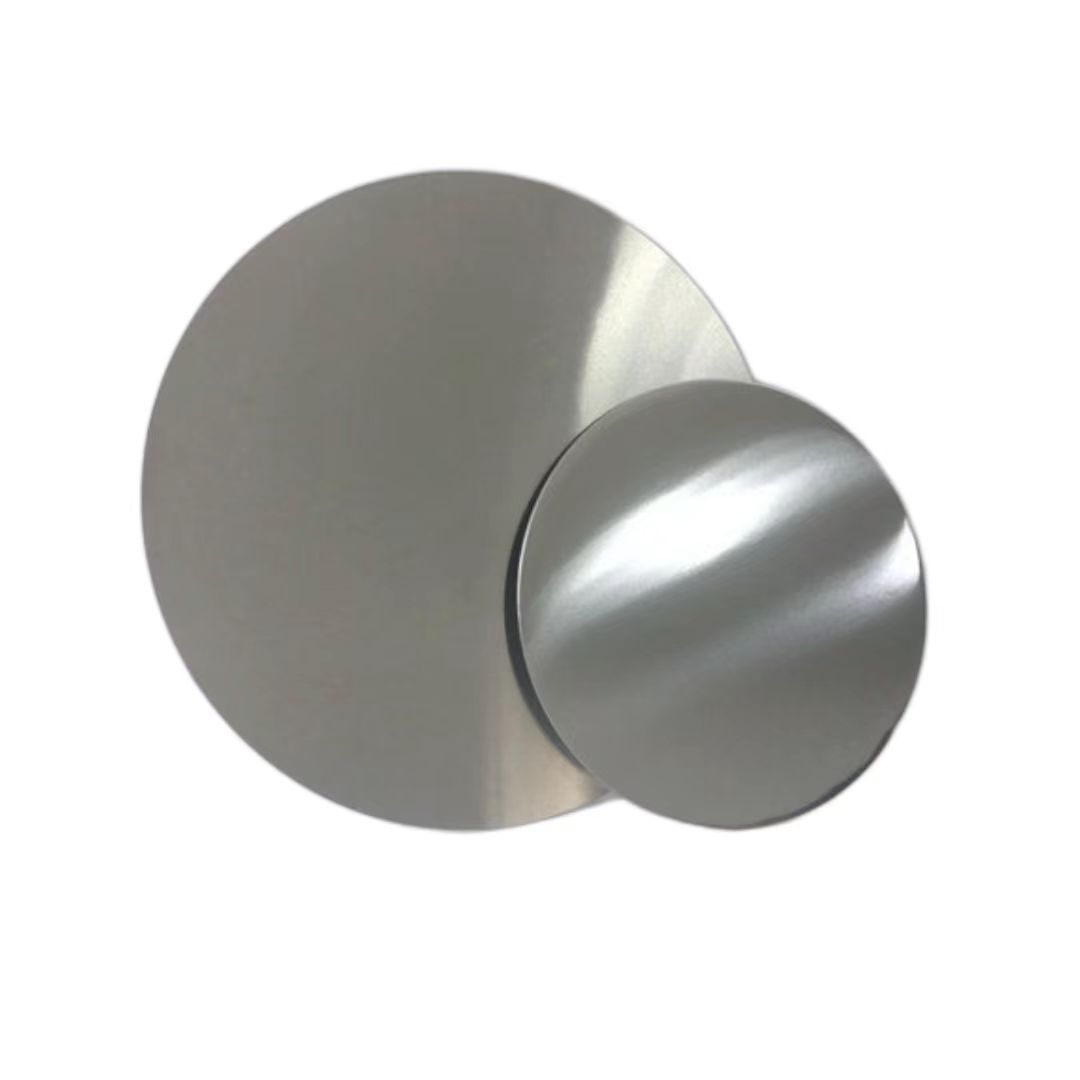

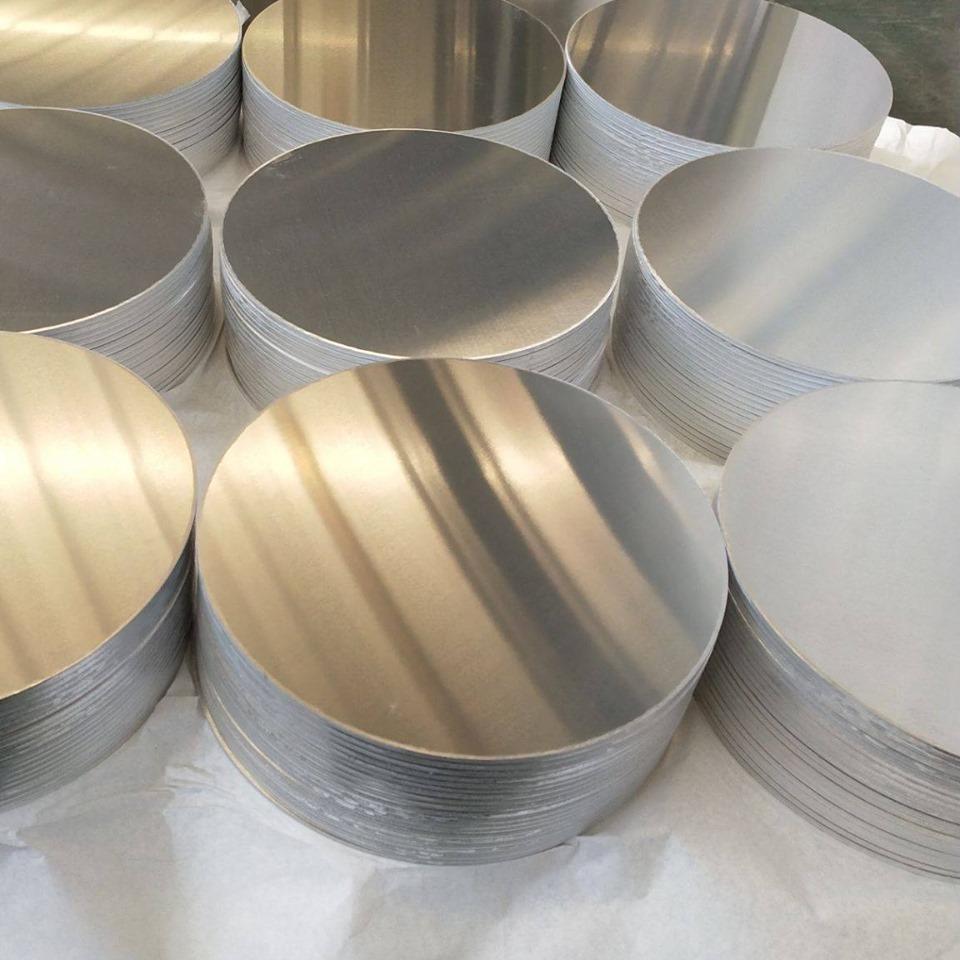

Aluminum circles, also known as aluminum discs, are one of the most versatile and widely used aluminum products in both industrial and decorative applications. With excellent corrosion resistance, lightweight properties, and superior machinability, aluminum circles have become a preferred choice for manufacturers worldwide.
An aluminum circle is a round aluminum sheet processed from aluminum coil or plate. Typically produced in various diameters and thicknesses, these circles are designed to meet specific project requirements. Common alloys for aluminum circles include 1050, 1100, 3003, 5052, and 5083, which provide a balance of strength, flexibility, and corrosion resistance.
Lightweight yet Strong: Aluminum circles offer durability without adding unnecessary weight.
Corrosion Resistant: Ideal for both indoor and outdoor applications.
Excellent Formability: Can be easily stamped, pressed, or machined into various shapes.
Eco-Friendly: Aluminum is 100% recyclable, making aluminum circles a sustainable choice.
a. Aluminum Circle Specifications:
Products Name | Alloy | Purity | Hardness | Specification | |
Thickness | Diameter | ||||
Aluminum Circle | 1050, 1070, 3003 | 99.50-99.70% | O, H12, H14 | 0.4-5.0 | 90-1150 |
b. Chemical Composition (%) for Aluminum Circle:
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ca | V | Ti | Other | Min Al |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | - | 0.05 | - | 0.05 | 0.03 | 0.03 | 99.50 |
1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | - | - | 0.04 | - | 0.05 | 0.03 | 0.03 | 99.70 |
3003 | 0.60 | 0.70 | 0.05-0.20 | 1.00-1.50 | -- | - | - | 0.10 | - | - | - | 0.15 | Remainder |
d. Specification Tolerances
Aluminium Circles | |||
Thickness(mm) | Diameter Range (D)(mm) | ||
+/-0.05mm | D ≤ 455 | 455< D ≤ 1000 | 1000< D ≤ 1250 |
+/- 0.05mm | +/- 0.10mm | +/- 0.20mm | |
The max dimension may vary according to individual specifications | |||
As one of the top aluminum circle and aluminum circles manufacturer from China, Green House Aluminum offers different types of aluminum circles, aluminum disc and aluminum blanks.

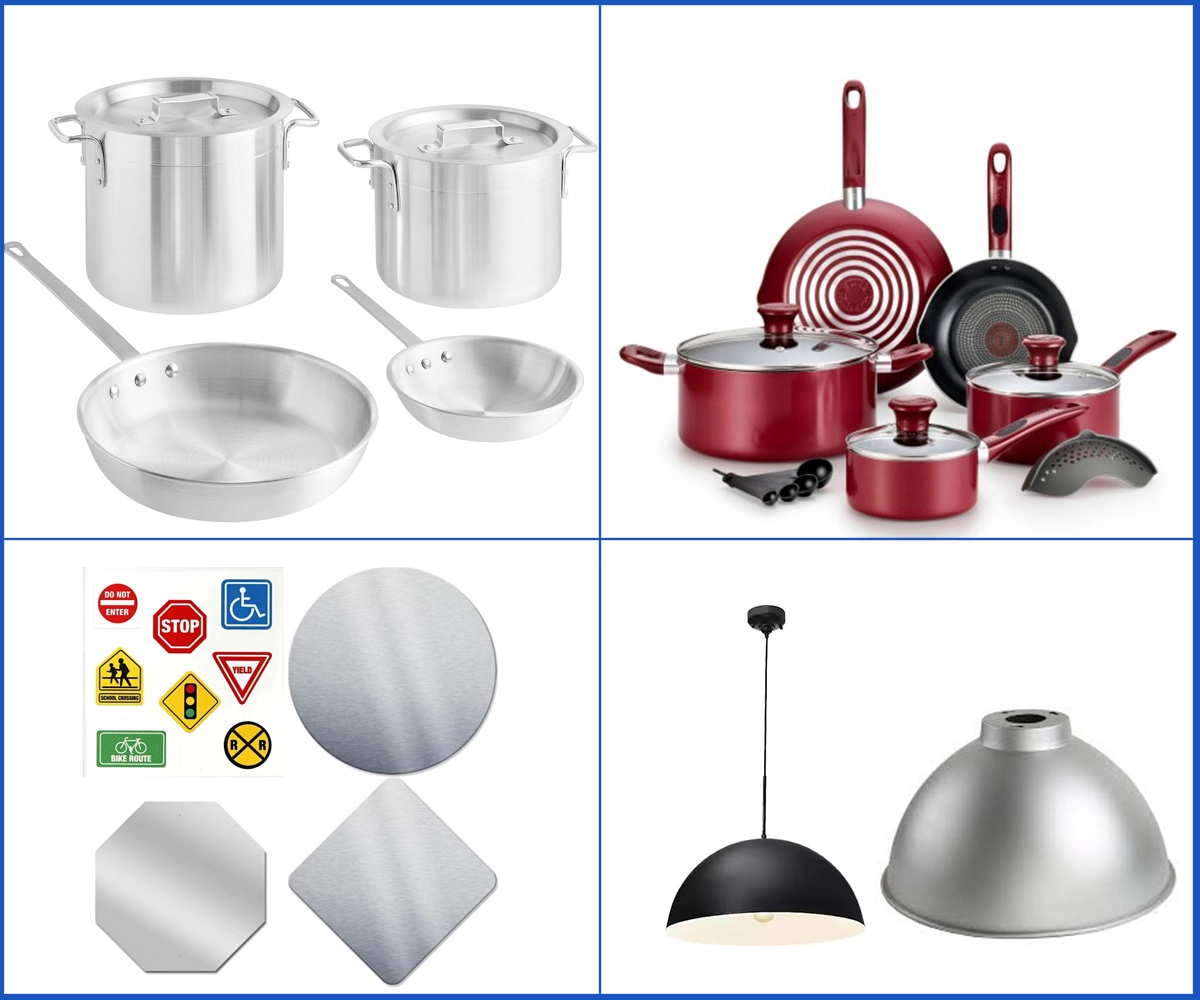

The specifications of cookware Aluminum circle disc normally are:
0.8mm-4mm 1060 O, H12 cookware aluminum circle disc suitable for frying pan, pizza pan and electric pots ect
1.0mm-3.5mm 3003 O aluminum circle disc for rice pressure cooker and care containers
0.5mm-2mm 1100 O cookware aluminum circle disc suitable for kettles
2mm-4mm 1100 O aluminum disc is mainly used as the bottom of cooker and the bottom plate of stainless steel cooker
2mm-4mm 1100 3003 aluminum discs are used for coating cookwares and utensils.
0.5-1.5mm 1100-O aluminum disc: suitable for standard lampshades
0.5-1.5mm 1100-O anodized aluminum disc: features excellent deep drawability. It retains a semi-mirror surface after bright dipping and anodization, with minimum total reflectivity reaching 65%.
0.5-5mm 1100-O coated aluminum disc: designed for coated aluminum lampshade production
Currently, it is mainly used to supervise traffic signs and road blanks, warning traffic signs, guidance signs, etc
Common alloy: 1060 3003 H14
Natural surface: degreased nature finish
Thickness: can reach 6.0mm
Diameter: customizable

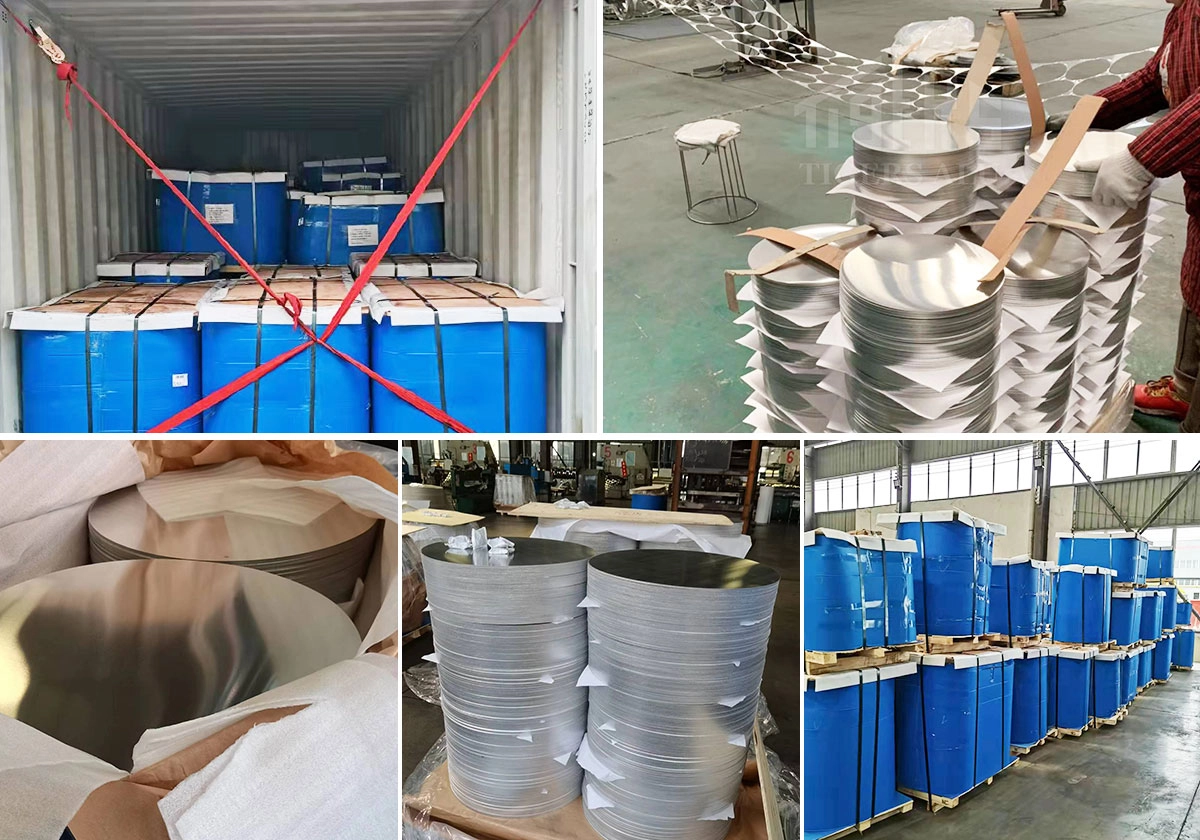

Packing of aluminum Circle Disc:
Aluminum discs are usually packed with waterproof plastic film first.
They are then bundled firmly and placed into sturdy wooden crates.
Anti-collision padding is added to avoid surface scratches.
Standard export packaging ensures safe long-distance transportation.
1.How do I choose the right aluminum circles, DC or CC better?
It depends on your process and end-use. For deep drawing and anodizing cookware, DC is ideal but is more expensive prices. But most of people use CC quality also ok for spinning and deep drawing, but cc quality not suitable for anodizing process.
2. Can you customize the aluminum disc diameter, thickness, or shapes?
Yes, we offer full customization — diameter, thickness, shapes like square, rectangle, oval shapes, all of them can be produced based on your requirements.
3.Can I get a sample test the quality first?
Sure. We offer free samples so you can verify the quality before order place.
4.How about the MOQ?
Generally, the trail order will be accepted. CC materials for 2 tons, DC materials for 5 tons, some special products are different, pls consult our salesman.
5.How about the delivery time?
Within 15-25days after receiving the deposit or L/C at sight.
6.Do you have English Mill Test Certificates?
Yes,that is what we give gurantee to our clients
7. Do you accept the third party inspection?
Yes, absolutely we accept third party inspection for the goods before shipment.
