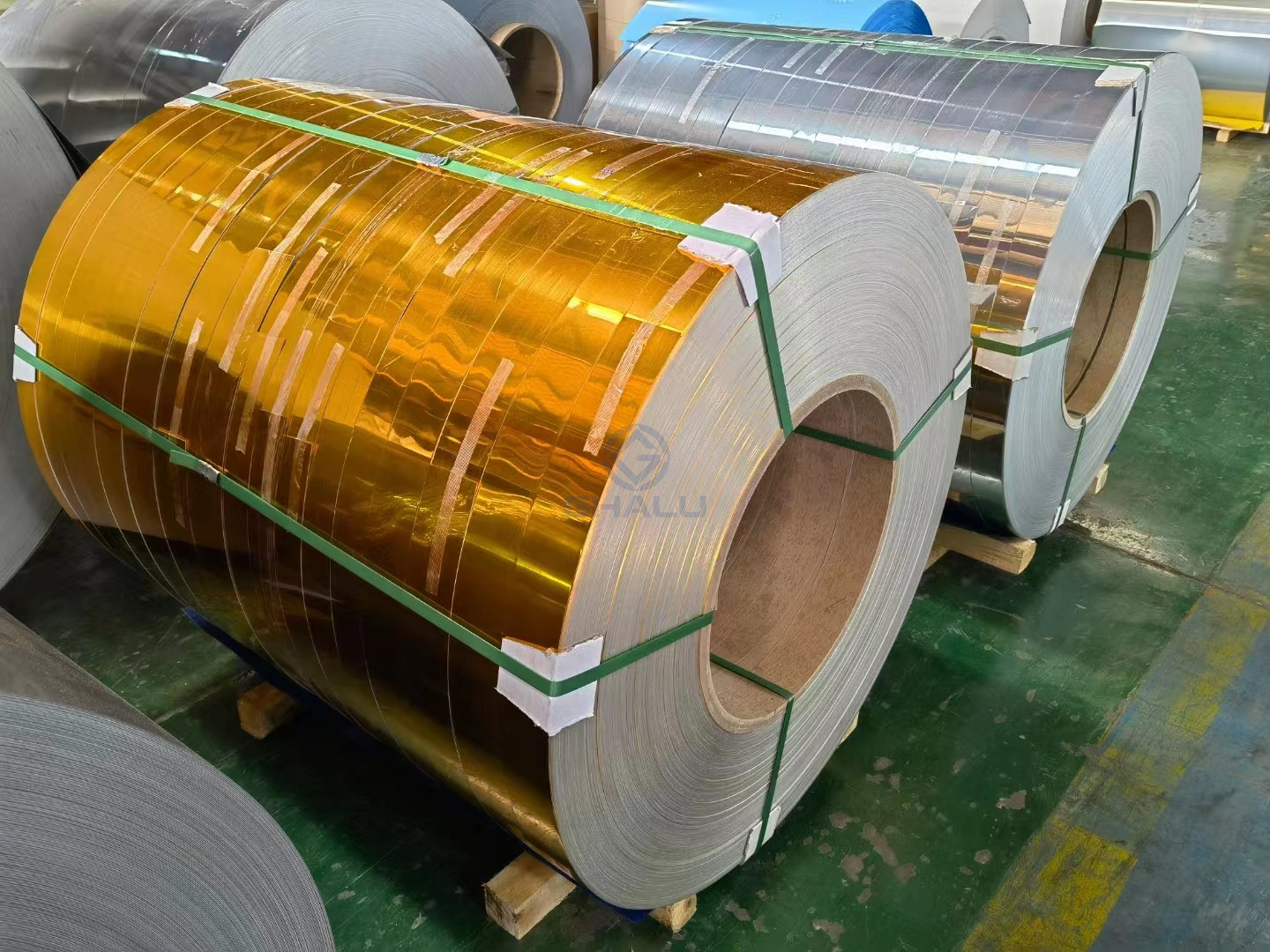

Color Coated Aluminum Strip Coil For Ceiling

1. What is Color Coated Aluminum Strip Coil Rolls For Ceiling?

Color coated aluminum Strip coils are produced from color coated aluminum coil then slit into small width aluminum strips in coil, it commonly used in various applications, including ceiling systems, due to their durability, lightweight nature, and attractive appearance.

The typical production process includes:

Aluminum Coil → Surface Cleaning → Pretreatment → Primer Coating → Color Topcoat → Curing → Slitting → Inspection → Coil Packing

Compared with painting finished ceiling components after fabrication, pre-painted aluminum strip allows 3.manufacturers to receive a ready-to-process material with a consistent surface appearance and coating thickness.

The finished pre-painted aluminum strip can then be processed into different ceiling profiles and components through roll forming, bending, punching, cutting, stamping, and perforation.

2. Why Use Color Coated Aluminum Strip for Ceiling?

Aluminum is widely used in modern ceiling systems because it combines low weight, corrosion resistance, formability, and an attractive architectural appearance. Pre-painted aluminum further adds a controlled decorative finish and allows manufacturers to select colors and gloss levels according to project requirements.

1. Lightweight for Ceiling Systems

Aluminum has a favorable strength-to-weight ratio, making it suitable for suspended ceiling and architectural interior applications.

The relatively low weight of aluminum ceiling components can simplify transportation, handling, installation, and supporting structure requirements.

2. Excellent Corrosion Resistance

Aluminum naturally forms a protective oxide layer, while the coating system provides an additional protective surface.

This makes color coated aluminum strip coil suitable for many interior ceiling environments where resistance to moisture and general atmospheric exposure is required.

For demanding environments, the coating system should be selected according to humidity, UV exposure, chemical exposure, and other project conditions.

3. Consistent Color and Surface Finish

Because the coating is applied continuously before the aluminum is slit, manufacturers can achieve a consistent appearance across large production batches.

Available finishes can include:

White

Black

Silver

Grey

Blue

Red

Green

RAL colors

Metallic colors

Matte finishes

Satin finishes

Gloss finishes

Custom colors

For architectural projects requiring a specific color, RAL color matching or an approved physical sample can be used as the color reference.

4. Excellent Formability

Color coated aluminum strip can be processed into various ceiling profiles using:

Roll forming

Cutting

Slitting

Bending

Punching

Stamping

Folding

Perforation

Press forming

This makes the material suitable for both standard ceiling systems and customized architectural ceiling designs.

5. Suitable for Continuous Production

The coil format is particularly suitable for manufacturers using automated production lines.

Continuous aluminum strip can be decoiled, roll formed, cut to length, punched, perforated, or otherwise processed with fewer material handling steps.

This can improve production efficiency for large-volume ceiling manufacturing.

Green

 Color Coated Aluminum Strip Coil Specifications

The exact specification should be customized according to the ceiling profile, forming equipment, coating requirements, and final application.

House Color Coated Aluminum Coil Strip is extensively used in the production of aluminum alloy ceilings,  The product meets the standards of GB3880-2012 or ASTM B209.

Parameters for Color Coated Aluminum Roofing Ceiling Coils:

• Alloy & Temper for regular coated aluminum coils: 3003H24, 3003H26, 3004H24, 3004H26

• Thickness for regular roofing ceiling aluminum coils: 0.5mm,0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm

• Width range: can be cut to 200mm to 1300mm, accurate to ±0.05mm

• Color: customized

• Coating thickness: 18 to 28 microns

• Color typing: PE, PVDF


4. Coating Options for Ceiling Aluminum Strip

1) PE Coated Aluminum Strip

PE (Polyester) coated aluminum strip is commonly used for interior architectural applications where good decorative performance and economical cost are important.

It is suitable for:

Interior ceiling panels

Aluminum strip ceilings

Suspended ceilings

Decorative ceiling systems

Ceiling grids

Wall and ceiling decoration

PE coating is generally a practical choice for standard indoor applications.

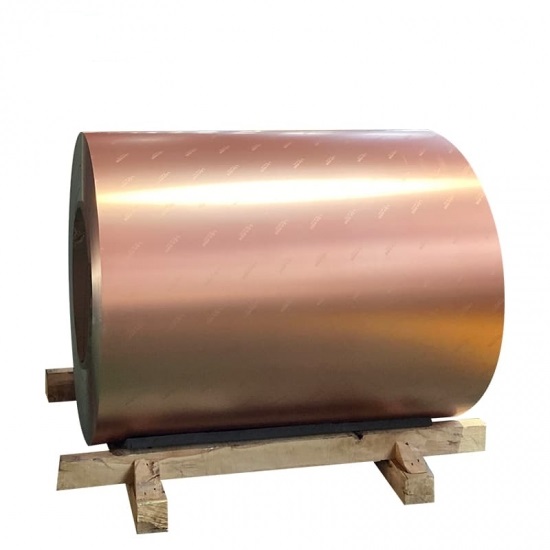

2) PVDF Coated Aluminum Strip

PVDF coated aluminum strip is designed for applications requiring higher coating durability and resistance to environmental exposure.

PVDF can be considered when the project requires enhanced:

Weather resistance

UV resistance

Color retention

Chemical resistance

Surface durability

For standard indoor ceiling systems, PE may be sufficient, while PVDF can be selected for more demanding applications.

3) HDP and Other Coating Systems

Depending on the project, high-durability polyester and other coating systems can also be supplied.

The appropriate coating should be selected based on:

Indoor or outdoor exposure

Expected service life

UV exposure

Humidity

Cleaning requirements

Required color retention

Surface appearance

Forming requirements

5. Color Coated Aluminum Strip Manufacturing Process:

High-quality ceiling aluminum strip requires controlled production from aluminum substrate selection through final slitting.

Step 1: Aluminum Coil Selection

The aluminum alloy and temper are selected according to the required thickness, width, strength, and forming performance.

Step 2: Surface Cleaning

The aluminum surface is cleaned to remove oil, dust, and other contaminants.

Step 3: Surface Pretreatment

Pretreatment improves coating adhesion and helps enhance corrosion protection.

Step 4: Primer Application

A primer layer is applied to improve adhesion between the aluminum substrate and the topcoat.

Step 5: Color Coating

The selected PE, PVDF, HDP, or other coating system is applied continuously to the aluminum coil.

Step 6: Curing

The coating is cured under controlled conditions to achieve the required coating performance.

Step 7: Slitting

The coated master coil is slit into narrow aluminum strip coils according to the customer's required width.

Step 8: Quality Inspection

The finished strip is inspected for:

Width tolerance

Thickness

Coating thickness

Color consistency

Surface defects

Coating adhesion

Coil edge quality

Flatness

Packaging condition

Step 9: Packaging

The finished aluminum strip coils are packed for safe transportation and protection against scratches, moisture, and deformation.

6.Request a Quote for Color Coated Aluminum Strip Coil:

When requesting a quotation, please provide the following information:

Aluminum alloy: 1050 / 1060 / 1100 / 3003 / 3004 / 3105 or required alloy

Temper: O / H14 / H16 / H24 / H26 or required temper

Thickness: required thickness

Strip width: required slit width

Coating: PE / PVDF / HDP / other

Color: RAL number or color sample

Surface finish: matte / satin / gloss / metallic

Coating side: one side or two sides

Coil ID: required inner diameter

Coil weight: required weight

Quantity: total order quantity

Application: strip ceiling / suspended ceiling / linear ceiling / baffle ceiling / other

Providing these specifications allows the manufacturer to recommend the appropriate aluminum alloy, thickness, coating system, and coil configuration for your ceiling production line.

Frequently Asked Questions

1. What is the difference between color coated aluminum coil and aluminum strip?

Color coated aluminum coil refers to the wider master coil, while color coated aluminum strip generally refers to narrower slit coil produced from the master coil.

2. Is color coated aluminum strip suitable for suspended ceilings?

Yes. Color coated aluminum is widely used for suspended ceiling panels, strip ceilings, linear ceilings, baffle ceilings, and other architectural ceiling systems.

3. What coating is best for aluminum ceiling strip?

PE coating is commonly suitable for standard interior ceiling applications. PVDF or other higher-performance coating systems can be selected when greater durability, UV resistance, or environmental performance is required.

4. Can the aluminum strip be customized?

Yes. Thickness, width, alloy, temper, coating, color, gloss, coil weight, core diameter, and packaging can be customized according to the customer's requirements.

5. Can you supply RAL colors?

Yes. Color coated aluminum strip can be produced according to RAL color references or an approved customer sample.

6. Can color coated aluminum strip be roll formed?

Yes. Pre-painted aluminum strip can be designed for roll forming, bending, punching, cutting, stamping, and other manufacturing processes. The alloy, temper, thickness, and coating system should be selected according to the forming requirements.
