Anodized Aluminum Sheet Blanks for Laser Engraving
Anodized Aluminum Sheet Blanks for Laser Engraving are specially finished aluminum sheets designed for laser marking, engraving, signs, nameplates, labels, tags and other identification applications. The anodized surface provides an attractive, durable finish while allowing laser equipment to create clear and high-contrast markings.
Compared with ordinary untreated aluminum sheets, anodized aluminum blanks provide a more consistent surface appearance and are available in different colors, thicknesses, sizes and finishes to meet different engraving requirements.
What Are Anodized Aluminum Sheet Blanks?
Anodized aluminum sheet blanks consist of an aluminum substrate with a controlled anodized surface layer. The anodizing process improves the surface properties of aluminum and can provide a colored, uniform and durable finish.

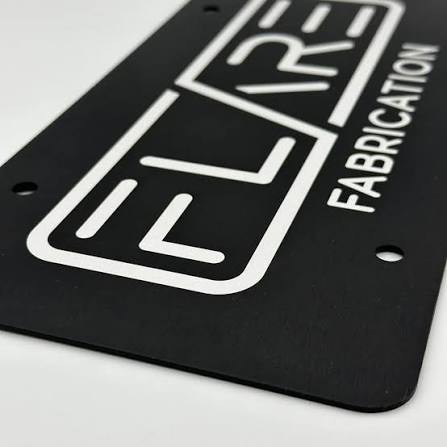

During laser engraving, the laser selectively removes or changes the colored anodized layer, creating a contrasting image or text. This makes anodized aluminum particularly suitable for producing detailed logos, serial numbers, QR codes, text, graphics and identification information. Laser processing of anodized aluminum is widely used for data plates, advertising signs and identification plates.
Our anodized aluminum sheet blanks for laser engraving can be supplied as standard sheets or cut-to-size blanks according to customer requirements.
Key Features of Anodized Aluminum Laser Engraving Blanks
1. Excellent Laser Engraving Performance
Anodized aluminum is well suited to laser marking and engraving. Depending on the laser system and material specification, both fiber and CO₂ laser systems can be used for anodized aluminum applications.
The laser can create sharp text, logos, numbers, symbols and other graphics, making the material suitable for both simple identification plates and detailed designs.
2. High Contrast Engraving
One of the major advantages of anodized aluminum is the contrast between the anodized background and the engraved area.

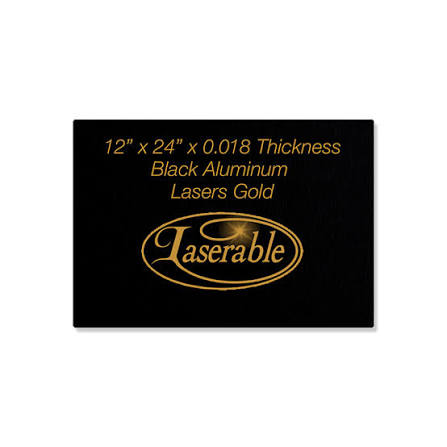

For example, darker anodized surfaces can produce a bright or light-colored marking when the laser removes the colored layer. This provides excellent readability for text, logos and identification information.
3. Durable Surface
The anodized layer improves the surface resistance of aluminum against normal environmental and handling conditions. Depending on the alloy, anodizing process and finish, performance can vary, so the appropriate specification should be selected according to the intended application.
This makes anodized aluminum blanks suitable for applications where appearance and identification need to remain clear over an extended service period.
4. Lightweight and Easy to Process
Aluminum provides a useful combination of low weight and good strength. The sheets can be cut, punched, drilled, bent or otherwise fabricated according to the requirements of the finished product.
This makes anodized aluminum blanks suitable for both prototype production and larger-volume manufacturing.

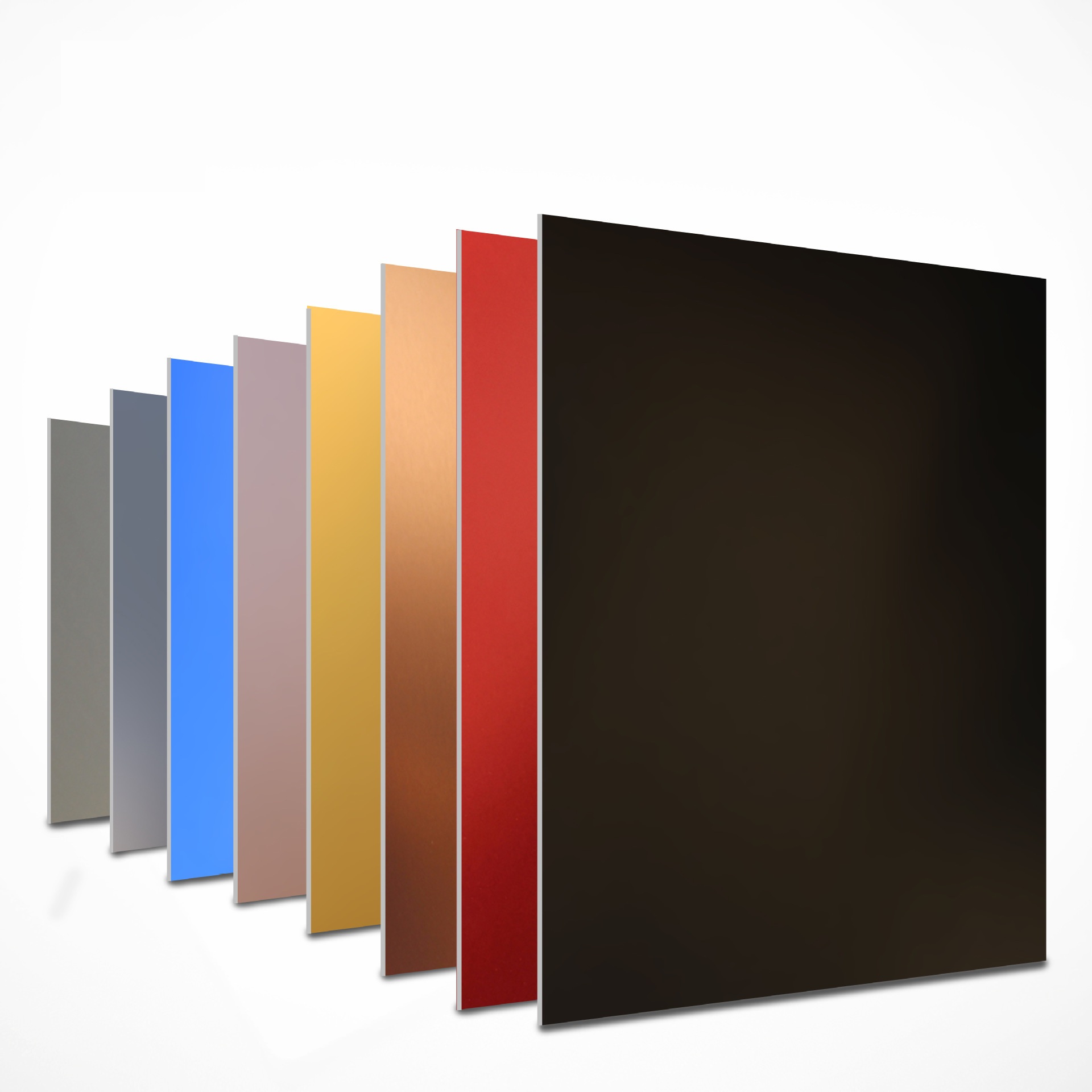

5. Multiple Colors and Finishes
Anodized aluminum sheets can be supplied in a range of colors and surface appearances.
Common options include:
Black anodized aluminum
Silver anodized aluminum
Gold anodized aluminum
Blue anodized aluminum
Red anodized aluminum
Brushed anodized aluminum
Satin anodized aluminum
Custom colors according to project requirements
The color and anodizing specification can influence the final laser marking appearance, so sample testing is recommended for new applications.

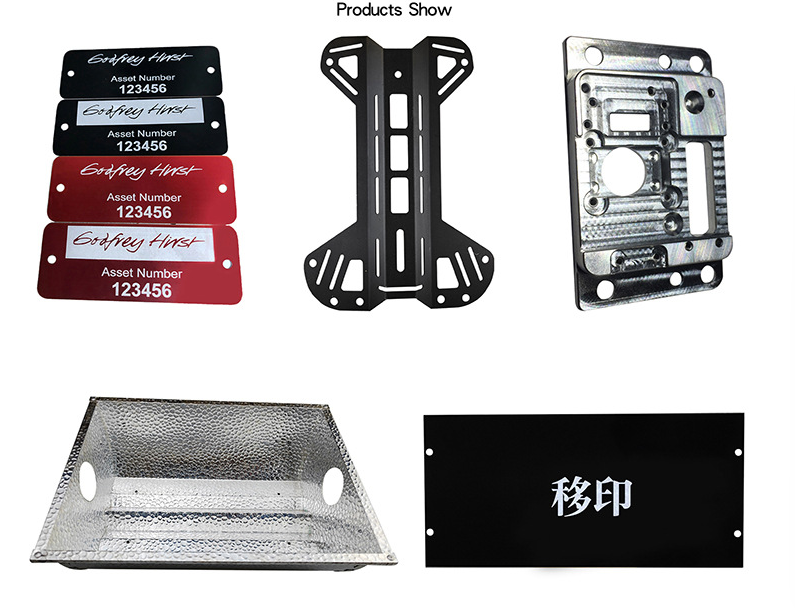

Applications of Anodized Aluminum Sheet Blanks
Our anodized aluminum sheet blanks for laser engraving can be used in a wide range of industrial, commercial and decorative applications.

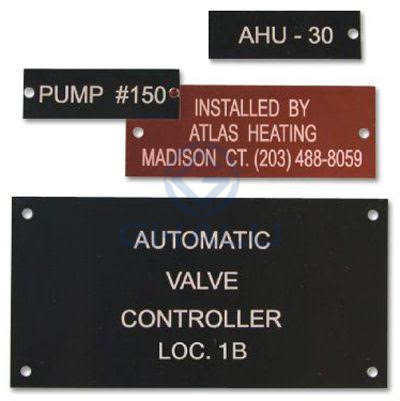

Industrial Nameplates
Anodized aluminum is widely used for:
Equipment nameplates
Machine identification plates
Serial number plates
Rating plates
Asset identification tags
Industrial labels
Control panel labels
Laser marking allows manufacturers to add serial numbers, model numbers, specifications and other variable information efficiently.
Signs and Identification Plates
Anodized aluminum blanks are suitable for:
Indoor signs
Outdoor identification signs
Door signs
Address plates
Warning signs
Information plaques
Facility identification plates
Anodized aluminum is already used commercially for durable signs and identification products.
Equipment and Electrical Labels
For electrical equipment, machinery and industrial systems, laser-engraved aluminum blanks can be used for:
Control panel labels
Electrical equipment labels
Switch identification
Instrument panels
Control boxes
Component identification
Safety information plates
Awards and Decorative Products
Anodized aluminum engraving blanks can also be used for:
Awards
Trophies
Medals
Commemorative plaques
Personalized gifts
Promotional products
Decorative plates
Commercial engraving materials are commonly offered for awards, trophies, nameplates and labels.
Technical data sheets of brushed anodized aluminum sheets:
| Specification | Typical Value / Range | Common Standards / Notes |
|---|---|---|
| Alloy | 5005, 1050, 1060, 1100, 3003, 5052 | EN AW-5005 5052 is very common for anodizing due to its consistent color |
| Temper | H14, H24, H32, O | Indicates the material's hardness and how it was processed (e.g., strain-hardened, annealed). |
| Thickness | 0.1 mm to 6.0 mm, and beyond | Range varies greatly by supplier and application. Common decorative range: 0.5 mm - 3.0 mm. |
| Width | 1000 mm, 1250 mm, 1500 mm, up to 2200 mm | Often customizable to project needs. |
| Length | 2000 mm, 2500 mm, 300 mm, 4000 mm, or in coils | Can be supplied as sheets or in coil form. |
| Tensile Strength | 85 - 240 MPa (depending on alloy/temper) | For 5005-H14, it's typically 145-185 MPa. |
| Yield Strength | 35 - 200 MPa (depending on alloy/temper) | The stress at which material begins to deform plastically. |
| Elongation | 3% - 40% (depending on alloy/temper) | Measure of ductility. Lower for harder tempers (e.g., H14) . |
| Surface Hardness | Up to 9H (Pencil Hardness) | The anodized layer is extremely hard, protecting the brushed finish . |
| Oxide Film Thickness | 5 - 25 μm (microns) | Thicker films (up to 200 μm for hard anodize) offer more protection . |
| Corrosion Resistance | Excellent; passes ISO 9227 neutral salt spray test | The anodic layer provides outstanding protection against corrosion and UV . |
| Reaction to Fire | Class A1 (non-combustible) | Suitable for use in building facades and other applications with strict fire codes. |
| Electrical Conductivity | 35 - 62% IACS (depending on alloy) | Not usually a primary spec for decorative use, but available. |
| Thermal Conductivity | 133 - 236 W/m･℃ (depending on alloy) | Aluminum is an excellent heat conductor. |
Why Choose Anodized Aluminum for Laser Engraving?
Anodized aluminum provides several advantages for laser engraving applications:
1）High-contrast marking：The contrast between the anodized surface and engraved area makes text and graphics easy to read.
2）Fine detail：Laser marking can reproduce small characters, logos, serial numbers and other detailed graphics.
3）Permanent identification：Laser marking does not rely on conventional ink printing, making it suitable for applications requiring durable identification.
4）Professional appearance：The anodized surface provides a clean and attractive metallic appearance.
5）Flexible customization：Different sizes, shapes, colors and thicknesses can be produced for different applications.
As an aluminum manufacturer and supplier, Hunan Green House Aluminum Industry Co., Ltd. can provide anodized aluminum sheets and customized aluminum blanks for different industrial and commercial applications.
We support customized:
Aluminum alloy
Sheet thickness
Sheet size
Blank dimensions
Shape
Anodized color
Surface finish
Cutting and fabrication requirements
Packaging
Whether you need anodized aluminum sheet blanks for laser engraving, aluminum nameplate blanks, laser engraving plates, aluminum sign blanks or custom identification plates, we can provide aluminum materials according to your project requirements.
Frequently Asked Questions
1.Can anodized aluminum be laser engraved?
Yes. Anodized aluminum is commonly used for laser engraving and laser marking. Fiber and CO₂ laser systems can be used depending on the material and application.
2. What is anodized aluminum used for?
Anodized aluminum is commonly used for nameplates, labels, signs, identification plates, equipment panels, badges, awards and other products requiring a durable decorative or functional surface.
3.What colors are available for anodized aluminum blanks?
Common colors include black, silver, gold, blue and red. Custom colors may also be available depending on production requirements.
4.Can you provide custom-size anodized aluminum blanks?
Yes. Anodized aluminum sheets can be supplied as standard sheets or processed into custom sizes and shapes according to customer drawings or specifications.
5.What information should I provide for a quotation?
For an accurate quotation, please provide the required aluminum alloy, thickness, sheet or blank size, anodized color, surface finish, quantity and application. If the blanks will be laser engraved, providing the laser type and engraving requirements is also helpful.
Proper packing is crucial for protecting the high-quality, finished surface of anodized aluminum sheets during storage and transit. The goal is to prevent scratches, abrasion, staining, and moisture damage.
No Metal-to-Metal Contact: This is the most critical rule.
Use of Neutral Materials: All packing materials in direct contact with the aluminum must be chemically inert.
Secure immobilization: The pack must not shift during transport.
Complete Weather Protection: The package must be sealed against rain and humidity.
Following these meticulous packing standards ensures that the anodized aluminum sheets arrive at their destination in perfect condition, preserving their aesthetic and functional properties.
