Aluminium Strip Coils for Transformer

Alloy：1050, 1060, 1100, 1200
Temper：O soft
Thickness：0.2-3.5mm
Width： 20mm min up to 1500mm
ID: 76mm or 508mm

Packing: by strong wooden pallets or cases

Availability:

Quantity:



Inquire Add to Basket

Model:
Aluminum strip Rolls
Brand:
Green House Aluminum
Code:
76061199

Aluminium Strip for transformer aluminum tape for transformer Aluminium Coil for transformer transformer aluminum coil transformer aluminum strip Pure Aluminum Strips for Transformer transformer aluminum strips factory transformer aluminum coil manufacturer transformer winding aluminum strip high purity aluminum strip for transformer

Product Description

Packing

1. Introduction of Aluminium Strip Coils for Transformer:

Choosing the right conductor is essential for balancing performance and budget in today's electrical infrastructure. Our low-voltage aluminum coil strips are expertly designed as a high-performance, cost-effective solution for transformer windings and related equipment. As a viable substitute for copper, aluminum delivers impressive weight reduction and significant cost advantages, driving its rising popularity in distribution transformers and industrial applications worldwide.

2. Why Choose Our slited aluminum strip coil for transformer?

Engineered with high-purity aluminum alloy conductors, our strips deliver exceptional value for low-voltage transformer applications. Here's how they enhance your bottom line and product quality:

Easier Handling: The lightweight nature of aluminum drastically cuts down on the transformer's overall weight, making it easier to transport and install on-site.
Cost Savings: Enjoy significant reductions in material costs compared to copper, without sacrificing reliability. Plus, aluminum offers more predictable pricing for better budgeting.
Reliable Performance: We compensate for aluminum's lower conductivity by adjusting the wire gauge, ensuring that your distribution transformers operate efficiently and reliably.
Cooler Operation: Our coil design effectively manages heat through lower current density, which translates to less energy wasted as heat and a longer service life for the transformer.

transformer aluminum strip coils

3. Specification of aluminum strip coil for transformer:

Grade & Temper	1050/1060/1070/1350-HO (soft O)
Thickness	0.2-3.0 mm
Width	20-1350 mm
Inner Diameter	75/150/300/400/500 mm
Conductivity Number(% IACS)	≥61
Resistivity number (Ω·mm² /m)	≤0.027548
Elongation (%)	min 20
Tensile strength(Mpa)	≥55
Density in 20°C	2.71kg/cm3
Production Standard:	ASTM B209

Aluminum alloy chemical composition
Grade	Al(%) MIN	Si(%) Max	Fe(%) Max	Cu(%) Max	MN(%) Max	Zn(%) Max	Mg(%) Max	Ti(%) Max	Other elements(%)
1050	99.5	0.25	0.4	0.05	0.05	0.05	0.05	0.03	0.03
1060	99.6	0.25	0.35	0.05	0.03	0.05	0.03	0.03	0.03
1070	99.7	0.25	0.04	0.03	0.04	0.04	0.03		0.03
1350	99.5	0.1	0.05	0.01	0.01	---	---		0.03

4. Aluminum vs. Copper: Key Benefits

Switching from copper to aluminum coils offers several compelling advantages:

(1).Cost Savings: Lower material costs and stable market pricing.

(2).Lighter Weight: Easier to handle and install, simplifying mechanical design.

(3).Optimized Performance: Adjusting the cross-section ensures efficient current flow at a lower cost.

(4).Target Applications: Best used in low-voltage and large distribution transformers where weight and cost are critical.

(5).Important Note: Aluminum has only 60% of copper's conductivity. To ensure optimal results, designs must specify larger cross-sections or improved cooling solutions.

Aluminum Strip Advantages

5. Why choose us as your supplier of aluminum strip coil for transformer?

We maintain the highest quality standards and recommend the following handling procedures for transformer aluminum coils :

Industry Standards: Our products are manufactured to meet or exceed recognized transformer conductor standards and aluminum winding specifications.

Comprehensive Quality Checks: Critical parameters such as specification (thickness, width), conductivity, surface finish are verified during inspection.

Proper Packing: We pack the aluminum coils wrapped by anti-moisture packing materials and put them with wooden strong pallets, ensure the surface keep clean, smooth and dry without any scratches.

Proper Storage: To ensure integrity, store coils in a dry, clean environment. Please avoid any compression or damage to the outer layers and protect the material from corrosion or moisture until the time of installation.

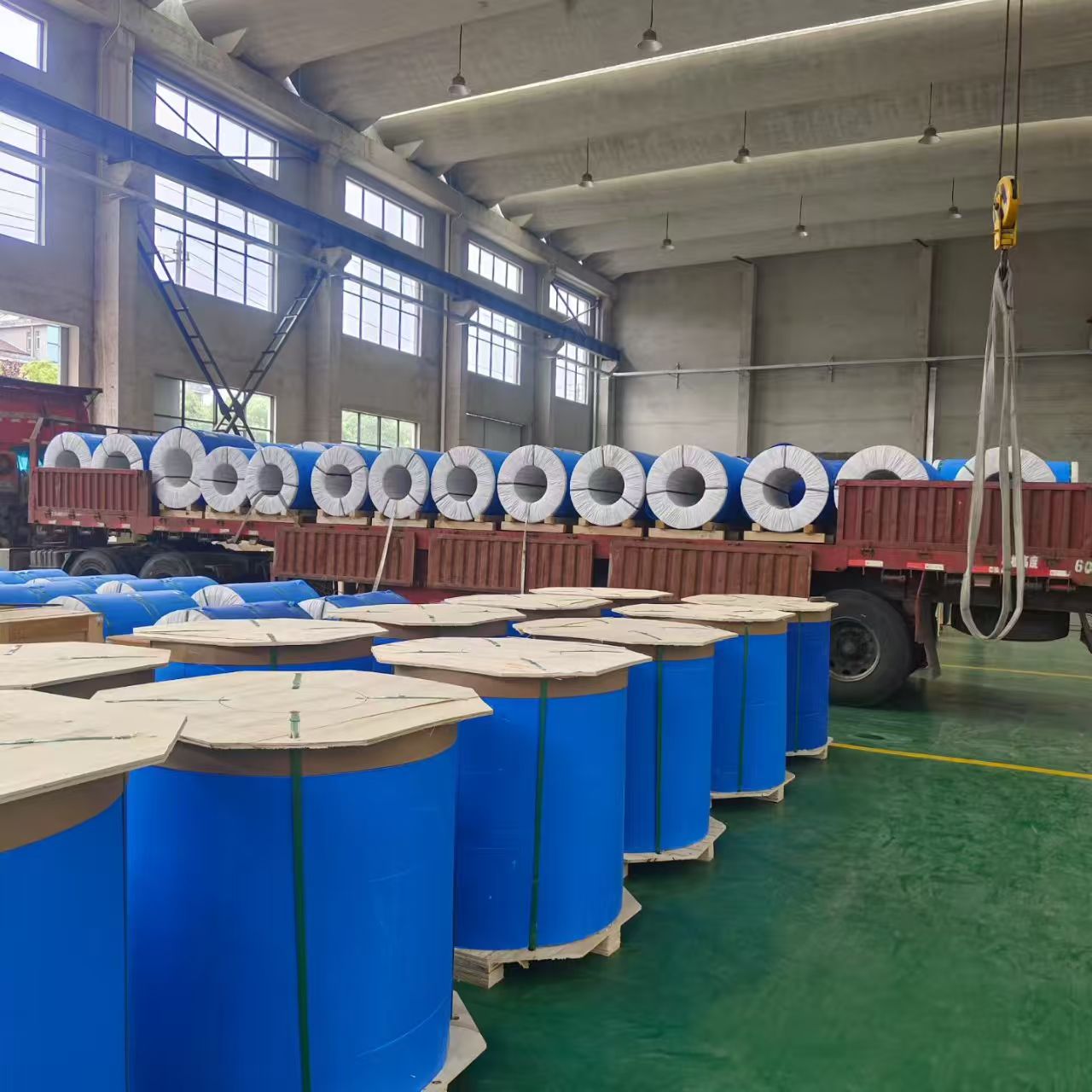

How to Pack Aluminum Strips for Full Protection?

Standard Complete Packaging Procedures:

Inner Anti-corrosion & Moisture Proof Wrap
Wrap each single aluminum strip roll tightly with waterproof plastic film + moisture-proof poly bag, to isolate dust, humidity and scratches during transit.
Vertical Placement (Eye-to-Sky)
Arrange 5–10 rolls upright (inner core hole facing upward) to avoid extrusion deformation from stacking pressure.
Pallet Loading & Fixing
Place the wrapped rolls neatly on standard wooden pallets. Use steel strapping or plastic tension bands to fasten the whole bundle firmly onto the pallet, preventing shifting and collision during shipping.
Outer Reinforcement (Optional for Long-distance Sea Freight)
Cover the entire pallet with an extra layer of stretch wrap to further lock the goods and strengthen dust & water resistance.

Core Protection Highlights

Anti-rust & waterproof: Double-layer plastic wrapping stops moisture and oxidation.

Anti-deformation: Upright loading avoids bending and crushing of aluminum strips.

Anti-loosening: Strapping + pallet fixation eliminates sliding damage in transportation.

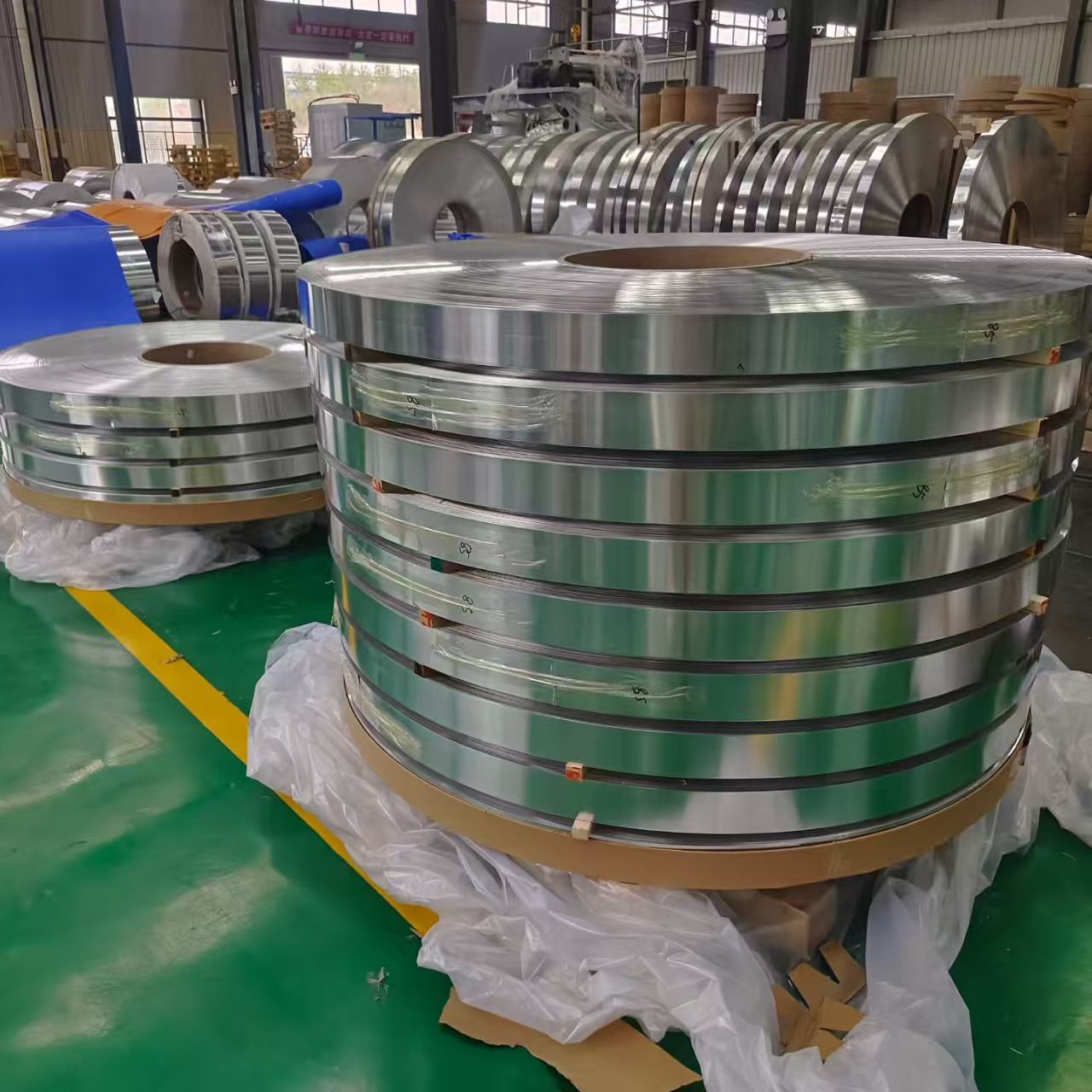

Aluminum Strips Packing
