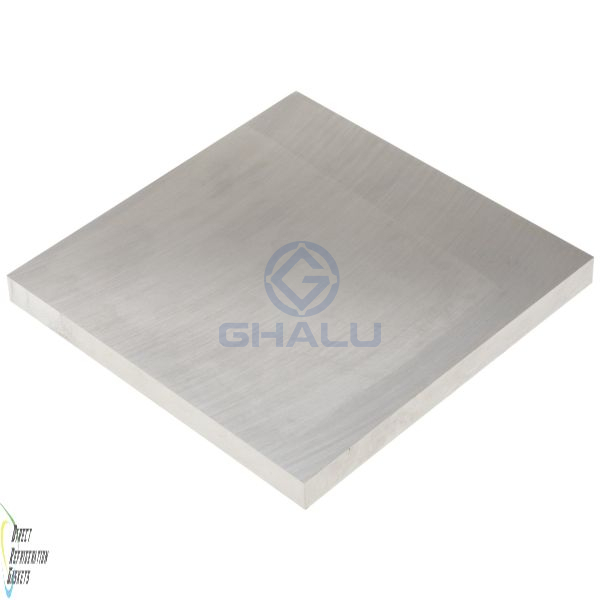

6061 T6 aluminum sheet
Geen House
76061259
6061-T6 aluminum plate is a heat-treatable alloy belonging to the Al-Mg-Si series, widely recognized for its
balanced combination of strength, corrosion resistance, and machinability. The "T6" designation indicates that the material undergoes solution heat treatment followed by artificial aging, enhancing its mechanical properties significantly. This alloy is a staple in industries requiring lightweight yet durable materials.

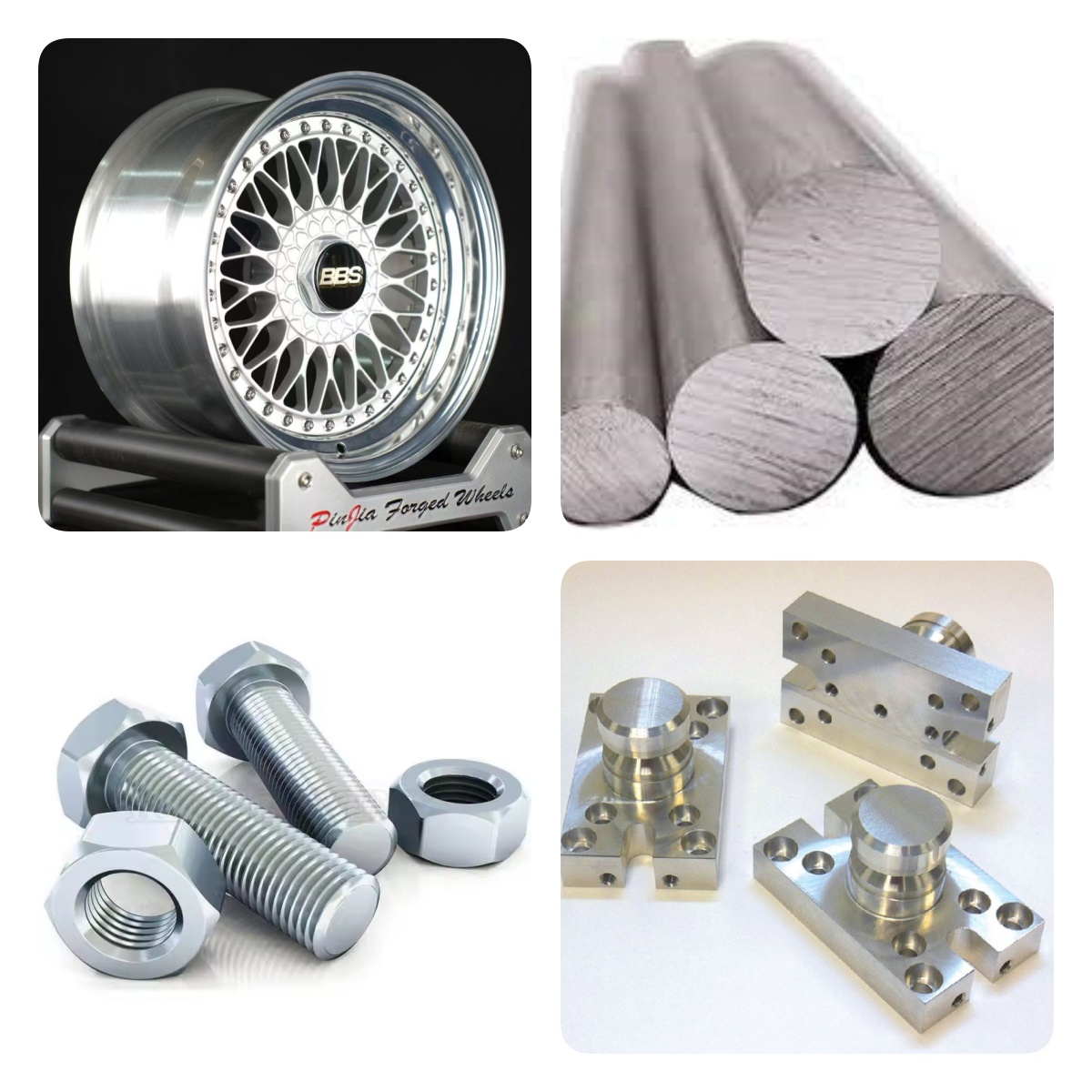

Key Applications of 6061 aluminum plate:
6061-T6 aluminum plate serves diverse sectors due to its versatile properties:
Aerospace: Structural components like fuselage frames and wing supports.
Automotive: Chassis parts, wheels, and body panels to reduce weight while maintaining safety.
Electronics: Heat sinks, circuit board mounts, and enclosures for excellent thermal conductivity.
Construction: Architectural frameworks, bridges, and marine structures for corrosion resistance.
Industrial Machinery: Precision molds, robotic parts, and tooling due to dimensional stability.
Advantages of 6061 aluminum plate:
1.High Strength-to-Weight Ratio: Offers tensile strength up to 290 MPa, ideal for load-bearing applications.
2.Corrosion Resistance: Performs well in harsh environments, including marine settings.
3.Machinability: Easily welded, extruded, or CNC-machined with minimal deformation.
4.Surface Finish: Accepts anodizing and coatings for enhanced aesthetics and durability.
5.Thermal Stability: Maintains performance across temperatures, suitable for heat exchangers.
Chemical Composition of aluminum plate sheets 6061:
| Element | Content (wt%) |
|---|---|
| Aluminum (Al) | Balance |
| Magnesium (Mg) | 0.8–1.2 |
| Silicon (Si) | 0.4–0.8 |
| Copper (Cu) | 0.15–0.4 |
| Chromium (Cr) | 0.04–0.35 |
| Manganese (Mn) | ≤0.15 |
| Zinc (Zn) | ≤0.25 |
| Titanium (Ti) | ≤0.15 |
Mechanical Properties of aluminum plate 6061 T6:
| Property | Value |
|---|---|
| Tensile Strength | 290–310 MPa |
| Yield Strength (0.2% offset) | 240–260 MPa |
| Elongation (%) | 10–12 |
| Hardness (Brinell) | 95–100 HB |
| Elastic Modulus | 68.9 GPa |
| Density | 2.73g/cm³ |
Conclusion:
6061-T6 aluminum plate stands out as a premier choice for engineering applications demanding reliability and versatility. Its optimized blend of mechanical performance, corrosion resistance, and ease of fabrication ensures its prominence across aerospace, automotive, and industrial sectors. For detailed specifications or custom requirements, refer to manufacturers' datasheets or material certifications319.
Aluminum 6061 T6 aluminum sheets and 6061 T6 aluminu plates are widely use for aircraft aluminum, industry molding, automatic mechanic component, shipping vessels, industrial equipment device components ect.
