1, 3, 5, 6 series alloys
Green House Aluminum
76061259

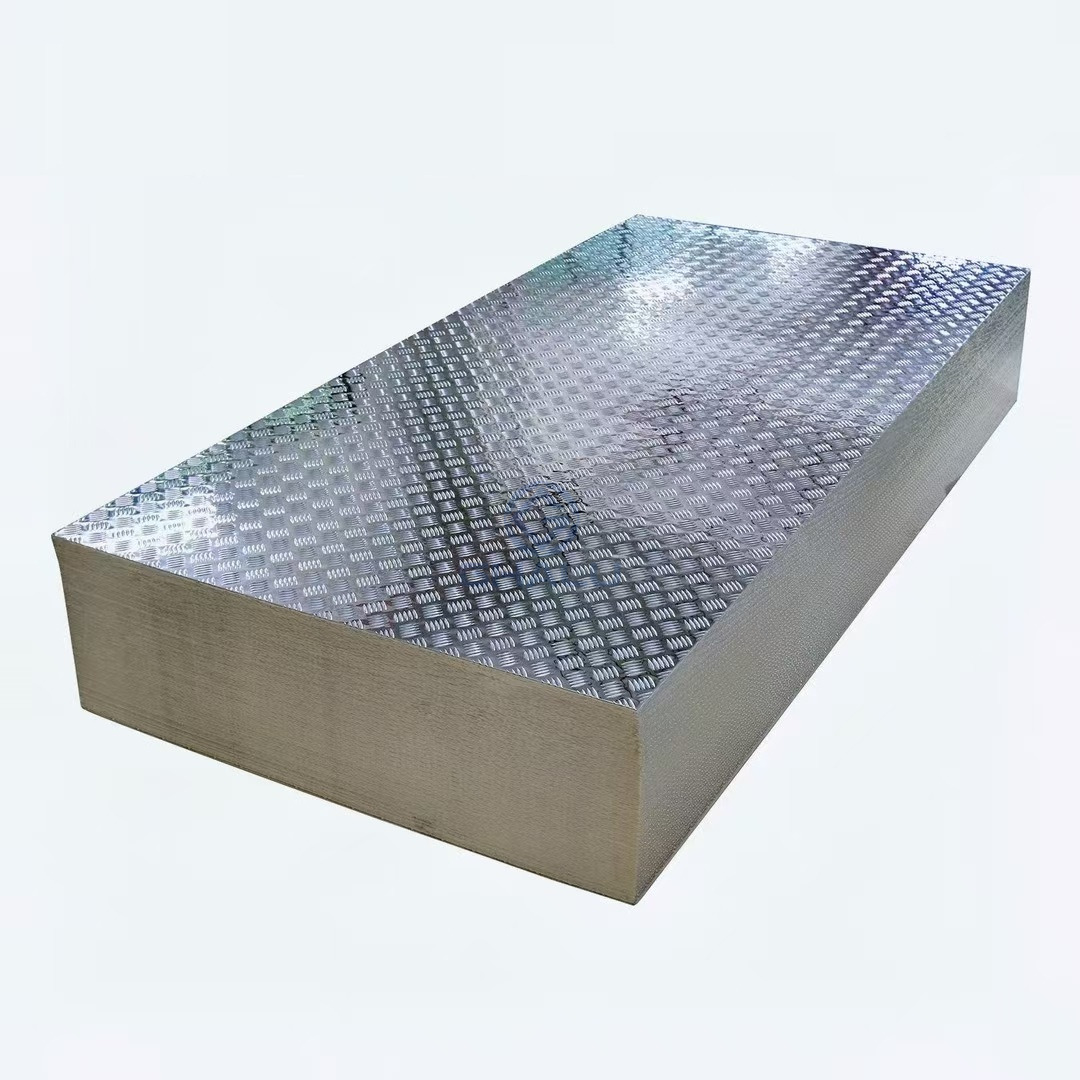

Aluminum tread plate also called as aluminum checker plate, is an aluminum metal typically used as flooring in industrial buildings and some vehicles because of its skid resistance.
The aluminum tread plate is available in 3003 Tread plates as well as1060, 1100, 5052, 5754, 5083, 6061 aluminum alloys. Our aluminum tread plates includes both bright and mill-finished plates, in both embossed and diamond tread forms.
The aluminum tread plates alloy 3003 can use as various industries including toolbox, cargo and emergency vehicle manufacturers, among many others applications.
Specification of Aluminum Checker Plate:
Alloy | 1050, 1060, 1070, 1100, 3003, 3004, 3105, 5052, 5754,5083, 6061 |
Temper | F, HO, H12, H14, H16, H18, H22, H24, H26, H32, H111, H112, T651 |
Pattern | finger, 2 bars, 3 bars, 5 bars, propeller and diamond bars |
Thickness | 0.8 - 6.0mm |
Width | 500 ~ 1550mm |

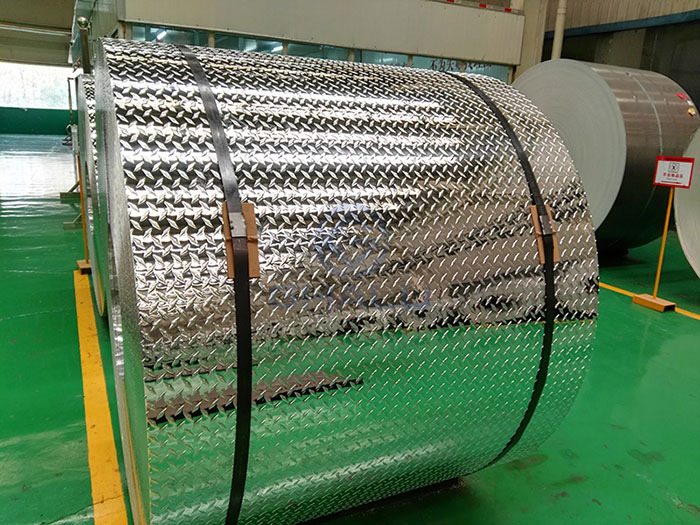

Length | customized or in coil |
Coil ID | 508mm |
Origin | China |
Packing | With paper interleaving or PVC film on surface, packed by strong wooden pallets. |
Payment Terms | 30% by TT in advance as deposit and 70% balance by TT or L/C at sight |
Lead Time | Within 25 days after receiving deposit |
Advantages of aluminium chequered sheet
Feature
Skid-resistance.
Resist rust.
Resist corrosion and long life.
Lighter than other material.
Remain high value after being replaced.
Decorative function.

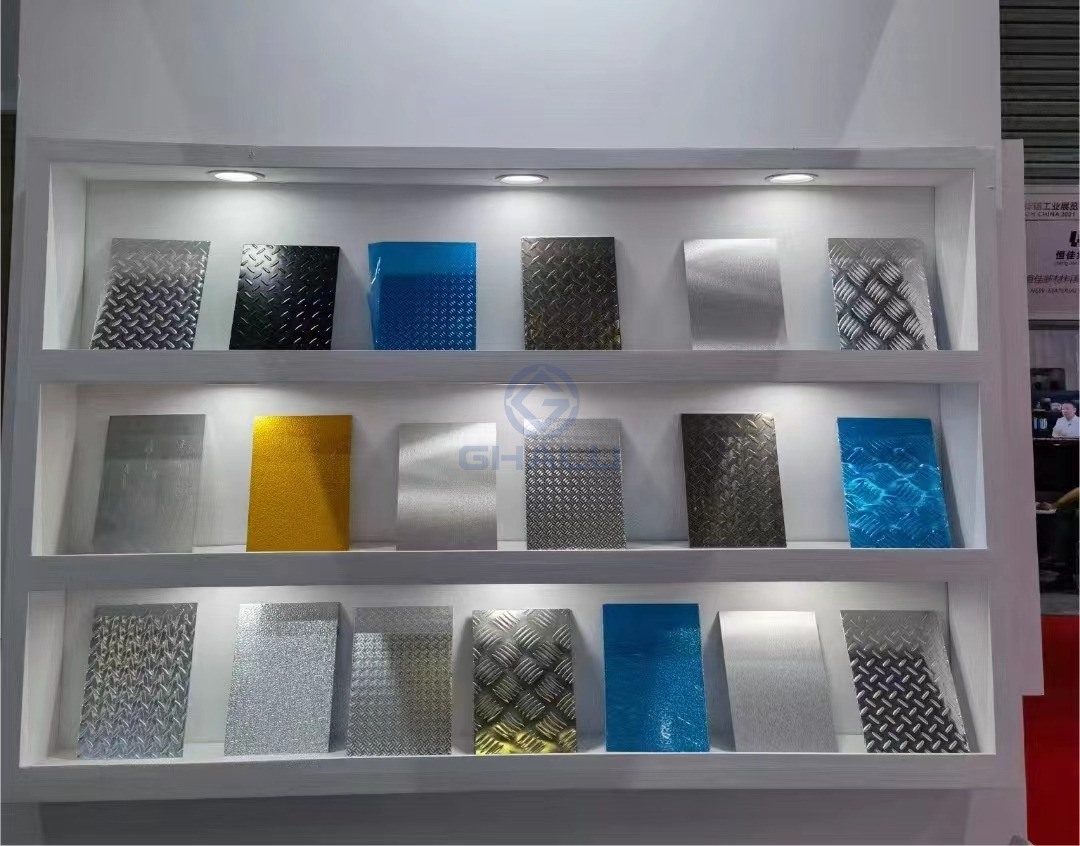

Types of aluminum tread plate (checkered plate, cheuqered plates): diamond plate,1 bar plate, 3 bars plate, 5 bars plate and perforated aluminium checker plates
Thickness: 0.8mm – 8.0mm
Width: 914 – 1650mm
Temper: all available
Flooring in industrial buildings
Automobile and rail transit
Decorative material, table leg, trim strip, handles
Screen framework
Other anti-skid fields

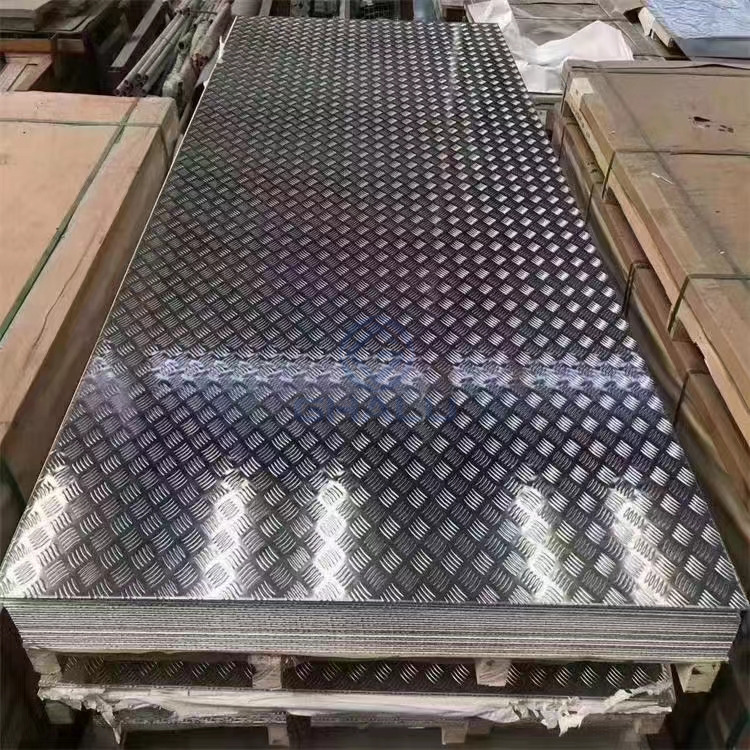

Aluminum checker plates with slip are carefully packed by exporting standard shipping using strong wooden pallets and boxes (the wooden box or pallets will be fumigated), ensuring Aluminum checker plates are protected from scratches.
To provide additional protection, we often place paper interleaving between the sheets or cover PVC film on the surface of aluminum checker plates ,so that these packages are designed to be waterproof, guaranteeing the safe transportation of the aluminum checker plates.
