Why Aluminum with Polysurlyn Is An Idea Thermal Insulation Material ?

3003 H14 aluminum coil (meeting ASTM B209 standard) with a Polysurlyn moisture barrier is a great all-around choice. It combines the strength and durability of aluminum with the moisture protection of the Polysurlyn layer. This article gives you a clear and simple overview of this product, including its features, and where it can be used. It also covers the benefits, tips quality control and how to take care of it. So, if you're looking for aluminum coil for projects insulation moisture damage and lasts a long time, may this article is a helpful guide.

1. What's in Aluminium 3003 H14?
Aluminium coil 3003 H14 is mostly aluminum, with small amounts of manganese and a few other elements. This mix gives the alloy great corrosion resistance and makes it easy to weld, so it works well for many different uses.

Aluminium coil 3003 H14 is popular because of its mechanical properties. It has high tensile strength, good stretchability, and decent fatigue strength. These features make it easy to form, bend, and shape during manufacturing.

Aluminium coil 3003 H14 is very good at conducting heat and electricity, which makes it a great choice for heat transfer applications. Its high heat conductivity helps it release heat effectively, and its good electrical conductivity allows electricity to flow through with very little resistance. Therefore, aluminum 3003 is a idea material as thermal insulation materials.

2.What is Polysurlyn Moisture Barrier?

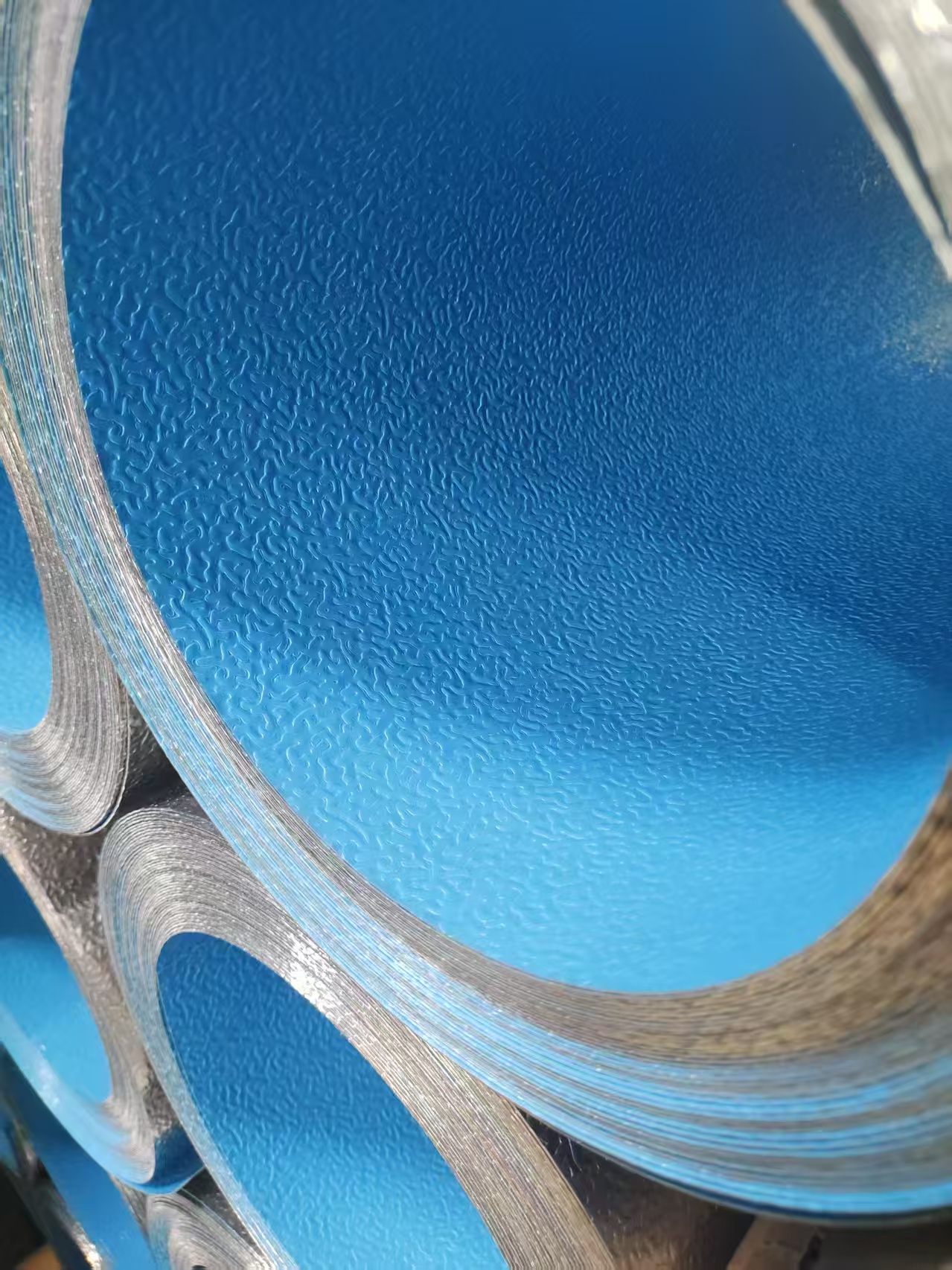

Polysurlyn Moisture Barrier (PSMB) is a high-performance, three‑layer co‑extruded polymer film used as a factory‑applied moisture barrier on metal jacketing for industrial insulation systems. Polysurlyn moisture barrier is It is a 3‑mil (76 μm) film made of:

Inner layer: Low‑density polyethylene (LDPE) – for strong adhesion to metal.

Middle layer: Surlyn resin – for structural strength.

Outer layer: High‑density polyethylene (HDPE) – for toughness and abrasion resistance.

It’s main function is to prevent corrosion on the inside of metal jacketing and insulated pipes/tanks by blocking moisture ingress.

3.Advantages of Polysurlyn Moisture Barrier：

Stops moisture damage – It keeps water vapor and humidity away from the aluminum coil, preventing rust, corrosion, and other moisture-related problems.

Extends product life – By protecting the aluminum from moisture and chemicals, it helps the coil last much longer, even in damp or outdoor environments.

Easy to apply – The barrier is laminated directly onto the aluminum surface during manufacturing, so no extra steps are needed during installation.

Strong and durable – It resists tearing, punctures, and wear, so the protection stays intact during handling, shipping, and installation.

Chemical resistance – It also blocks many chemicals and contaminants, which is useful in industrial or harsh environments.

Improves insulation performance – When used in insulation systems, the moisture barrier helps maintain the insulation's effectiveness by keeping it dry.

Cost-effective – By preventing damage and reducing the need for repairs or replacements, it saves money over time.

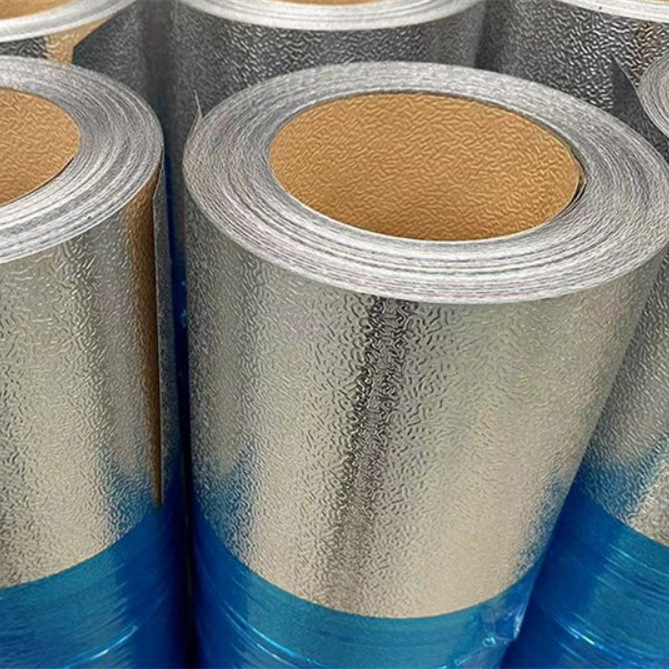

4. Comparison: Polysurlyn vs. Polykraft vs. Coated Moisture Barriers:

5.Quality Control and Inspection of Aluminum Coil with Polysurlyn Moisture Barrier：

To ensure the aluminum coil (3003 H14) with Polysurlyn moisture barrier meets high standards, we follow strict quality control and inspection steps. Here’s what we check:

Surface quality – Inspect the aluminum for scratches, dents, or oil stains. The Polysurlyn layer must be smooth, uniform, and free of bubbles, tears, or peeling.

Adhesion strength – Test how well the Polysurlyn barrier sticks to the aluminum. Poor adhesion can lead to moisture penetration.

Thickness consistency – Measure both the aluminum and the moisture barrier layer to ensure they meet specified thickness requirements.

Moisture barrier performance – Run tests (like water vapor transmission rate) to confirm the barrier effectively blocks moisture.

Dimensional accuracy – Check coil width, inner diameter, outer diameter, and weight to match customer orders.

Visual inspection under good lighting – Look for any defects like pinholes, wrinkles, or foreign particles trapped between layers.

Packaging check – Make sure the coil is properly wrapped, with edge protectors and desiccants if needed, to prevent damage during shipping and storage.

We document all inspection results and provide a quality certificate with each shipment. Regular sampling and real-time monitoring during production help us catch issues early.

If you have specific inspection requirements, please let us know. We can adjust our QC process accordingly.

Let me know if you'd like to turn this into a checklist or a short email.

6. How to Extend the Lifespan of Aluminium Rolls 3003 H14 with Polysurlyn?

To get the longest service life from your Aluminium 3003 H14 coils with Polysurlyn moisture barrier, follow these simple guidelines:

1. Store coils properly before use
Keep coils in a clean, dry, indoor area. Avoid direct contact with concrete floors – use wooden pallets or racks. Cover them with a breathable tarp if stored for a long time.

2. Handle with care
Always wear clean gloves to prevent oil or dirt from sticking to the barrier. Do not drag coils across rough surfaces – this can hurt the Polysurlyn layer or scratch the aluminum. Use padded lifting equipment.

3. Install correctly
Follow the installation steps: unroll gently, maintain overlaps (2–4 inches), seal all seams with compatible tape, and avoid over‑tightening fasteners. A good installation prevents moisture from getting behind the barrier.

4. Protect the Polysurlyn layer
The barrier is tough but can be damaged by sharp objects or harsh chemicals. While Aluminium 3003 H14 resists corrosion well, continuous exposure to strong acids, alkalis, or salt spray can shorten its life. Add extra protection (like a top coating) in harsh environments.

5. Perform regular inspections
Check installed surfaces every 6–12 months. Look for tears, peeling edges, or signs of moisture (stains, rust, mold). Repair small damages immediately with foil tape. Replace severely damaged sections.

By following these steps, your aluminum coils can last for many years without losing their moisture‑proof performance.
